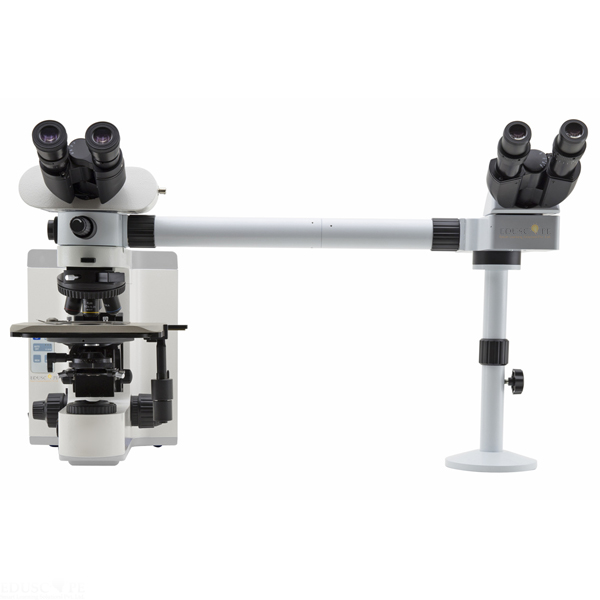

Two Head Pathology Microscope, Side by Side Manufacturer,Supplier and Exporter in India
Product Code : EL-TAMHM-11169
Quick Answer: The Two Head Pathology Microscope, Side by Side lets 2 observers view at once, with a 30° trinocular main head, a binocular discussion head with LED pointer, and 2x to 40x objectives.
Last updated: October 2026
Key Features
- Discussion attachment for 2 simultaneous observers, with LED pointer arrow
- Main trinocular head, 30°, three light paths: 100/0, 50/50, 0/100
- Second binocular head with WF10x/20 mm eyepieces
- Sextuple reversed nosepiece for RMS objectives, with DIC slot; objectives 2x, 4x, 10x, 20x, 40x
- Mineral solid surface stage 243 x 160 mm, belt drive, 100 x 60 mm travel, holds 2 slides
- 8W white LED, 6300K, with intensity knob on the left side
Technical Specifications
| Specification | Value |
|---|---|
| Objectives | 2x, 4x, 10x, 20x, 40x |
| Nosepiece | Sextuple, reversed, RMS, DIC slot |
| Main head | Trinocular, 30°, 100/0, 50/50, 0/100 |
| Stage | 243 x 160 mm, X 100 mm, Y 60 mm, 0.1 mm vernier |
| Illumination | 8W white LED, 6300K, approx. 50,000h life |
| Power supply | Input 100-240Vac 50-60Hz, output 6Vdc 2.5A, max 13W |
| Focusing | Coaxial coarse and fine, graduated 0.002mm, upper stop |
| Condenser | Swing-out, 0.90/0.25 NA |
About This Product
This side by side pathology microscope lets a second person follow the same specimen through a discussion attachment, while an LED arrow under the main head points out features. The main head is trinocular with a 30° viewing angle, and the stage is a belt drive mechanical stage with a mineral solid surface and vernier scales on both axes. Light comes from an 8W white LED with a colour temperature of 6300K, run from an external power supply. Beyond India, the Two Head Pathology Microscope, Side by Side is available for export to Antigua and Barbuda, Cyprus, Cameroon, Tajikistan, Georgia and Honduras.
Frequently Asked Questions
How many people can use the Two Head Pathology Microscope at once?
Two observers can view at the same time using the discussion attachment.
Which objectives are included?
2x, 4x, 10x, 20x and 40x objectives on a sextuple reversed nosepiece.
What is the LED life?
The LED average lifetime is approx. 50,000h.
Related: Teaching and Multi Head Microscope, Three Head Research Microscope and Binocular LED Dual View Teaching Microscope.
For a quotation on the Two Head Pathology Microscope, Side by Side, contact Didactic Lab.
