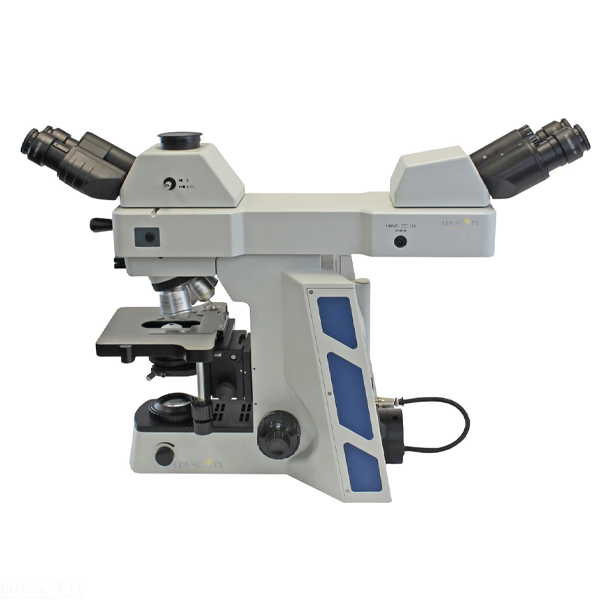

Dual View Microscope, Front to Back Manufacturer,Supplier and Exporter in India
Product Code : EL-TAMHM-11170
Quick Answer: The Dual View Microscope, Front to Back is a trinocular infinity microscope with a front to back teaching attachment that adds a second binocular head and an LED pointer for two observers.
Last updated: October 2026
Key Features
- Front to back teaching attachment with support post, LED pointer and second binocular head
- Trinocular main head, 30° inclined, 360° rotatable, with 0:100 or 50:50 split
- Infinity plan achromat objectives 4x, 10x, 40xR and 100xR oil on a reversed quintuple nosepiece
- WF 10x/22 mm focusable eyepieces with diopter adjustment and eye guards
- Ceramic hard-coated stage 175 x 153 mm with 76 x 50 mm travel and low position coaxial controls
- 3 watt LED with variable intensity and field iris diaphragm
Technical Specifications
| Specification | Value |
|---|---|
| Optical system | Infinity, f = 180 mm, anti-mould |
| Eyepieces | WF 10x/22 mm, accepts 26.5 mm reticle |
| Condenser | Achromat swing-out, N.A. 1.25, rack and pinion, iris diaphragm |
| Stage | Ceramic, 175 x 153 mm, 76 x 50 mm X-Y |
| Illumination | 3 watt LED; rated over 20,000 hours |
| Power | Universal, 110v-240v |
| Stand | Cast alloy aluminium |
| Accessories | Dust cover, immersion oil, instruction manual |
About This Product
This teaching microscope is set up for front to back observation: a binocular head on a support post serves the second user, and an LED pointer marks features in the shared view. The main trinocular head offers a 0:100 or 50:50 split. Focusing is coaxial with tension control and an upper limit stop, using all metal gears and a brass fine focus gear. Export enquiries for the Dual View Microscope, Front to Back are welcome from Iceland, Senegal, Sudan, Kyrgyzstan, Zambia and Saint Vincent and the Grenadines.
Frequently Asked Questions
How does the front to back teaching attachment work?
It adds a second binocular head with WF10x/22 mm eyepieces on a support post, plus an LED pointer, for front to back observation.
What is included?
A dust cover, immersion oil and an instruction manual.
Related: Teaching and Multi Head Microscope, Binocular LED Dual View Teaching Microscope and Dual View Teaching Microscope.
For a quotation on the Dual View Microscope, Front to Back, contact Didactic Lab.
