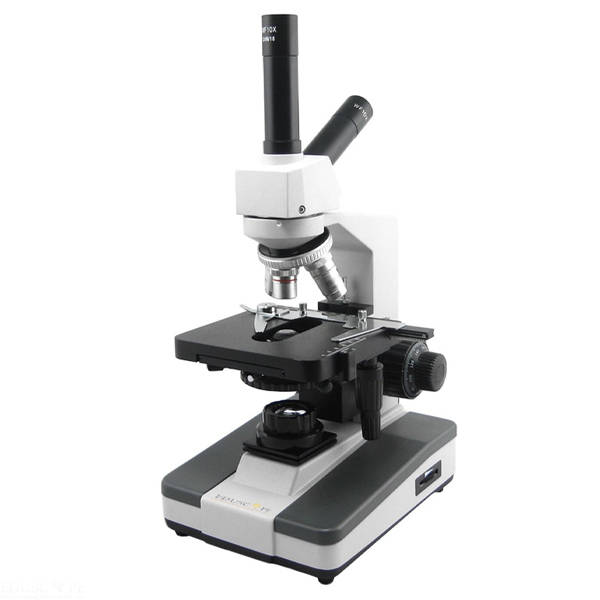

Dual View Teaching Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-TAMHM-11168
Quick Answer: The Dual View Teaching Microscope lets two people view at the same time through a 90° dual viewing tube, with 4x to 100x objectives and 6V 20W halogen illumination with variable intensity.
Last updated: October 2026
Key Features
- 90° dual view head so two people can observe at once, or for a photo or video setup
- WF 10x eyepieces with 18 mm field of view, one with a calibrated pointer
- Achromatic or plan objectives 4x, 10x, 40xR and 100xR, parfocal and parcentred
- Quadruple reverse nosepiece on ball bearings with internal stops
- Abbe condenser N.A. 1.25 with iris diaphragm and blue filter
- 6V 20W halogen illumination with variable intensity control
Technical Specifications
| Specification | Value |
|---|---|
| Eyepieces | WF 10x, 18 mm field |
| Objectives | 4x, 10x, 40xR, 100xR (achromatic or plan) |
| Dual view tube | 90°, with eyepiece |
| Stage travel | 40 mm and 70 mm X-Y, 1 mm graduations |
| Condenser | N.A. 1.25 Abbe, iris diaphragm, blue filter |
| Illumination | 6V 20W halogen, variable intensity |
| Included | Dust cover and instruction manual |
About This Product
This microscope can be used by two people at the same time through its 90° dual viewing tube, or set up with a photo or video system. The heads rotate through 360°, focusing is by coaxial coarse and fine controls, and the graduated mechanical stage has positive stops at both ends of its travel with tension adjustment. A low profile arm rest lets users rest their hands on the base. The Dual View Teaching Microscope is offered to export buyers in Liberia, Bahamas, Haiti, Vanuatu, Lithuania and Belgium.
Frequently Asked Questions
How many people can use the Dual View Teaching Microscope at once?
Two people can view at the same time through the 90° dual viewing tube.
What illumination does it use?
A built-in 6V 20W halogen system with variable intensity control.
Related: Teaching and Multi Head Microscope, Binocular LED Dual View Teaching Microscope and Trinocular LED Dual View Teaching Histopathology Microscope.
For a quotation on the Dual View Teaching Microscope, contact Didactic Lab.
