Binocular LED Dual View Teaching Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-TAMHM-11174

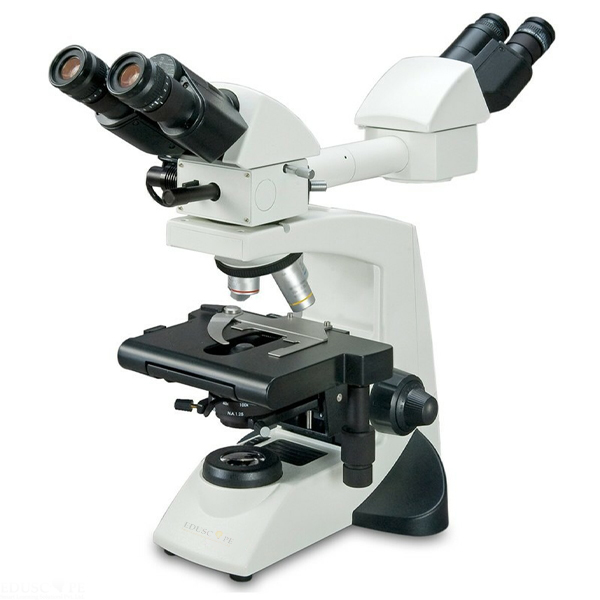

Quick Answer: The Binocular LED Dual View Teaching Microscope combines a main binocular microscope with a dual view bridge that carries a second binocular observation head and an illuminated LED pointer.
Last updated: October 2026
Key Features
- Main unit binocular head, 30° inclined, 360° rotatable, interpupillary distance 48 - 75mm
- Secondary unit: dual view bridge with binocular head, WF 10x/20mm eyepieces and an illuminated LED pointer
- Infinity corrected DIN plan achromatic objectives 4x, 10x, 40x and 100x oil
- Abbe condenser NA 1.25 with aspheric lens, iris diaphragm and blue daylight filter
- LED on a built-in rechargeable battery, up to 100,000 hours of LED life
- Double plate stage 200 x 160mm, X/Y travel 78mm x 54mm
Technical Specifications
| Specification | Value |
|---|---|
| Main viewing head | Binocular, 30° inclined, 360° rotatable, IPD 48 - 75mm |
| Secondary unit | Dual view bridge, binocular head, WF 10x/20mm, LED pointer, 100V-240V AC adapter |
| Eyepieces | Widefield 10x/20mm, focusable, accept 26mm reticle |
| Nosepiece | Reverse angle quadruple, ball bearing, click stops |
| Objectives | DIN plan achromatic 4x, 10x, 40x, 100x oil, antifungal |
| Condenser | Abbe NA 1.25, aspheric lens, iris, blue daylight filter |
| Focusing | Coaxial coarse and fine, ball drive system |
| Illumination | LED, built-in rechargeable battery, variable |
| Electrical | 100V - 240V AC, 50/60Hz, voltage stabiliser |
| Stage | Rackless X axis, double plate, 200 x 160mm |
About This Product
The secondary unit is a dual view bridge with its own binocular observation head, WF 10x/20mm eyepieces and an illuminated LED pointer, powered by its own 100V-240V AC adapter. The main unit runs its LED from a built-in rechargeable battery and sits on a single mould aluminium stand with hand rests. Its coaxial coarse and fine focusing runs on a ball drive system.
Frequently Asked Questions
What does the dual view bridge include?
A binocular observation head with WF 10x/20mm eyepieces, an illuminated LED pointer and a 100V-240V AC power adapter.
Which objectives are fitted?
Infinity corrected DIN plan achromatic 4x, 10x, 40x and 100x oil objectives; the 40x and 100x are spring loaded.
