Trinocular LED Dual View Teaching Histopathology Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-TAMHM-11173

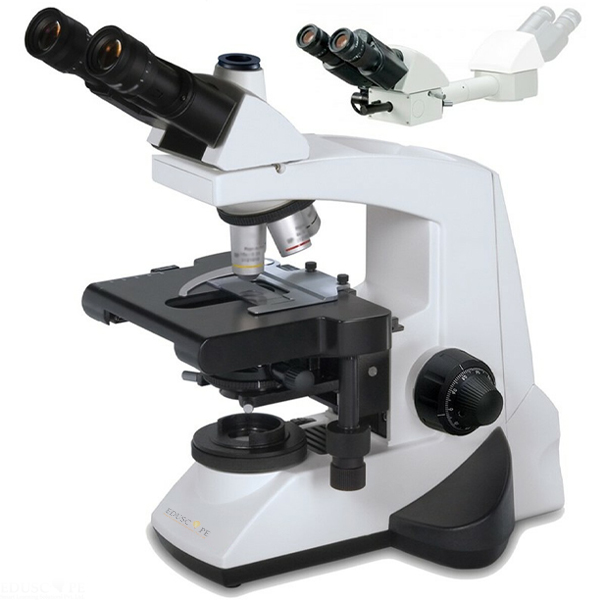

Quick Answer: The Trinocular LED Dual View Teaching Histopathology Microscope adds a dual view bridge with a second binocular head and illuminated LED pointer to a cordless trinocular microscope with 2.5x to 40x plan objectives.
Last updated: October 2026
Key Features
- Dual view bridge with binocular observation head, WF 10x/20 mm eyepieces and illuminated LED pointer
- Trinocular main body, 30° inclined, 360° rotatable, interpupillary 47 - 75 mm
- Infinity corrected plan achromatic objectives 2.5x, 4x, 10x, 20x and 40x (spring loaded)
- Quintuple reverse angle nosepiece with click stops and rubber grip
- LED illumination with built-in rechargeable battery, lamp life up to 100,000 hours
- Ceramic double plate stage 200 x 160 mm, 76 x 50 mm travel, double specimen holder
Technical Specifications
| Specification | Value |
|---|---|
| Main eyepieces | Focusable 10x/22 mm widefield, antifungal coated |
| Teaching head | Binocular, WF 10x/20 mm |
| Condenser | Flip-top Abbe NA 1.25, aspheric lens, iris diaphragm, blue filter |
| Fine focus | 0.3mm/rotation |
| Stage | 200 x 160 mm, rackless X-axis, 76 x 50 mm |
| Electrical | 100V - 240V AC, 50/60 Hz, voltage stabiliser |
About This Product
Designed for teaching histopathology, this microscope lets a second observer look through a binocular head on a dual view bridge while an illuminated LED pointer marks features. The main trinocular body has height adjustment, and its LED illumination runs on a built-in rechargeable battery, so it can be used cordless. Focusing is coaxial coarse and fine on gear systems, and the condenser is a flip-top Abbe type on rack and pinion.
Frequently Asked Questions
What does the dual view attachment include?
A dual view bridge with a binocular observation head, WF 10x/20 mm eyepieces, an illuminated LED pointer and a 100V-240V AC power adapter.
Which objectives are fitted?
Plan achromatic 2.5x, 4x, 10x, 20x and 40x (spring loaded), antifungal coated.
Related: Teaching and Multi Head Microscope, Binocular LED Dual View Teaching Microscope and Dual View Teaching Microscope.
For a quotation on the Trinocular LED Dual View Teaching Histopathology Microscope, contact Didactic Lab.
