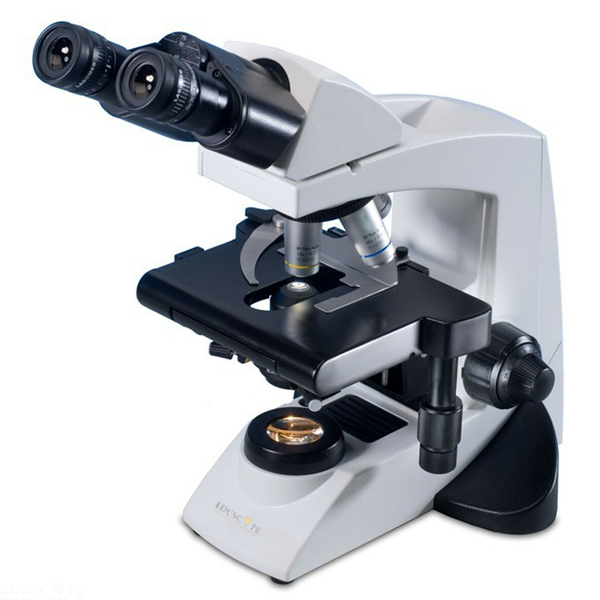

Binocular Cordless LED Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-LM-11148
Quick Answer: The Binocular Cordless LED Microscope is a binocular microscope with a built-in rechargeable battery for its LED illumination and infinity corrected DIN plan achromatic objectives from 4x to 100x oil.
Last updated: October 2026
Key Features
- LED illumination from a built-in rechargeable battery, with variable control and up to 100,000 hours of LED life
- Binocular head, 30° inclined, 360° rotatable, interpupillary distance 48 - 75mm
- Widefield 10x/20mm focusable eyepieces with foldable rubber eye guards, accepting a 26mm reticle
- DIN plan achromatic objectives 4x, 10x, 40x and 100x oil, the 40x and 100x spring loaded
- Abbe condenser NA 1.25 with aspheric lens, iris diaphragm and blue daylight filter
- Double plate stage 200 x 160mm with 78mm x 54mm X/Y travel
Technical Specifications
| Specification | Value |
|---|---|
| Eyepieces | Widefield 10x/20mm, focusable, antifungal, accept 26mm reticle |
| Viewing head | Binocular, 30° inclined, 360° rotatable, IPD 48 - 75mm |
| Nosepiece | Reverse angle quadruple, ball bearing, click stops |
| Objectives | Infinity corrected DIN plan achromatic 4x, 10x, 40x, 100x oil |
| Condenser | Abbe NA 1.25, aspheric lens, iris diaphragm, blue daylight filter |
| Focusing | Coaxial coarse and fine on a ball drive system |
| Illumination | LED, built-in rechargeable battery, variable control |
| Electrical | 100V - 240V AC, 50/60Hz, built-in voltage stabiliser |
| Stage | Rackless X axis, double plate, 200 x 160mm, travel 78mm x 54mm |
| Stand | Single mould aluminium with hand rests |
About This Product
Because the LED runs from a built-in rechargeable battery, this microscope can be used without a cord, and its universal input of 100V - 240V AC has a built-in voltage stabiliser. The single mould aluminium stand has hand rests, and the coaxial coarse and fine focusing runs on a ball drive system. The stage has a hard coated surface for scratch resistance and a double specimen holder clip. The Binocular Cordless LED Microscope is offered to export buyers in Zambia, Botswana, Zimbabwe, United Arab Emirates, Bolivia and Mali.
Frequently Asked Questions
How is the microscope powered?
The LED runs from a built-in rechargeable battery, and the universal input accepts 100V - 240V AC at 50/60Hz with a built-in voltage stabiliser.
Which objectives are fitted?
Infinity corrected DIN plan achromatic objectives of 4x, 10x, 40x and 100x oil; the 40x and 100x are spring loaded and all are antifungal.
Related: Laboratory Microscope, Binocular LED Cordless Histopathology Microscope and LED Binocular Biological Microscope, 1000x Magnification.
For a quotation on the Binocular Cordless LED Microscope, contact Didactic Lab.
