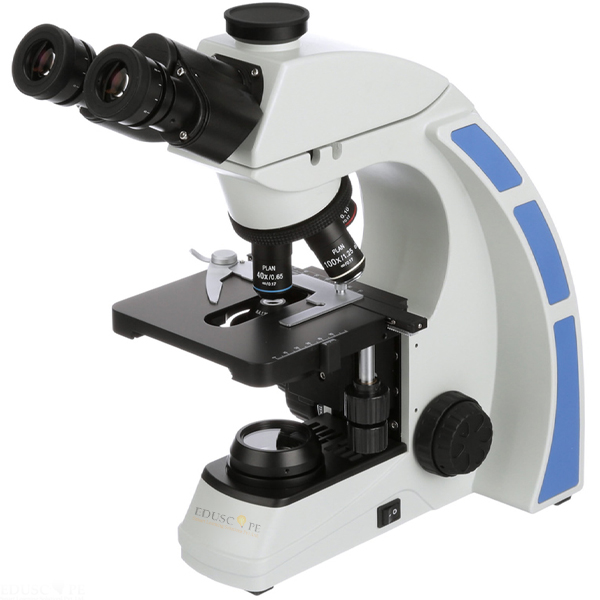

Trinocular Biological Microscope, 400x Magnification Manufacturer,Supplier and Exporter in India
Product Code : EL-LM-11149
Quick Answer: The Trinocular Biological Microscope, 400x Magnification has a trinocular head, infinity plan 4x, 10x and 40xR objectives with plan 10x eyepieces, and 3 watt LED illumination with variable intensity.
Last updated: October 2026
Key Features
- Trinocular head, 30° inclined, 360° rotatable, interpupillary 48-75 mm
- Infinity plan objectives 4x, 10x and spring-loaded 40xR
- Plan 10x eyepieces, 20 mm field of view, with diopter adjustment and a pointer in one
- Reversed quadruple ball bearing nosepiece with wide rubber grip
- Mechanical stage 140 x 132 mm with 76 x 50 mm X-Y movement
- Coaxial focusing with tension control, upper limit stop and brass fine focus gear
Technical Specifications
| Specification | Value |
|---|---|
| Objectives | Infinity plan 4x, 10x, 40xR (spring-loaded) |
| Eyepieces | Plan 10x, 20 mm field of view, lockable, accepts 21 mm reticle |
| Condenser | N.A. 1.25 Abbe, options for phase and darkfield sliders |
| Stage | 140 x 132 mm, 76 x 50 mm X-Y range |
| Illumination | 3 watt LED, variable intensity |
| Power | Universal, 110v-240v |
| Dimensions (L x W x H) | 387 x 196 x 391 mm |
| Accessories | Dust cover, immersion oil, instruction manual |
About This Product
With 10x eyepieces and objectives up to 40x, this trinocular microscope works to 400x magnification. Its Abbe condenser takes optional phase and darkfield sliders, and light comes from a 3 watt LED with variable intensity. The eyepieces can be locked in place, and the focusing has all metal gears, adjustable tension and an upper limit stop. Beyond India, the Trinocular Biological Microscope, 400x Magnification is available for export to Kyrgyzstan, South Sudan, Brazil, Indonesia, Guinea-Bissau and South Africa.
Frequently Asked Questions
What magnifications does the Trinocular Biological Microscope give?
Infinity plan 4x, 10x and 40xR objectives with 10x eyepieces, up to 400x.
What accessories are included?
A dust cover, immersion oil and an instruction manual.
Related: Laboratory Microscope, LED Binocular Biological Microscope, 1000x Magnification and Trinocular Biological Microscope with Plan Objectives.
For a quotation on the Trinocular Biological Microscope, 400x Magnification, contact Didactic Lab.
