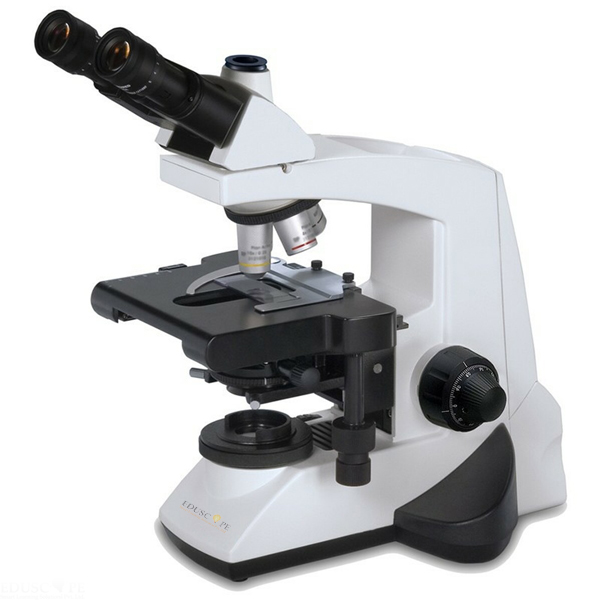

Trinocular LED Cordless Histopathology Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-LM-11155
Quick Answer: The Trinocular LED Cordless Histopathology Microscope has plan achromatic objectives from 2.5x to 40x on a quintuple nosepiece and LED illumination from a built-in rechargeable battery for cordless use.
Last updated: October 2026
Key Features
- Trinocular head, 30° inclined, 360° rotatable, interpupillary distance 47 - 75 mm with height adjustment
- Focusable 10x/22 mm widefield eyepieces with foldable eye guards
- Infinity corrected plan achromatic objectives 2.5x, 4x, 10x, 20x and spring loaded 40x, antifungal coated
- Flip-top Abbe condenser NA 1.25 with aspheric lens, iris diaphragm and blue filter
- Rackless ceramic double plate stage 200 x 160 mm with 76 x 50 mm travel
- Rechargeable LED illumination, up to 100,000 hours lamp life
Technical Specifications
| Specification | Value |
|---|---|
| Viewing body | Trinocular, 30°, 360°, 47 - 75 mm |
| Eyepieces | 10x/22 mm widefield, focusable |
| Objectives | Plan achromatic infinity 2.5x, 4x, 10x, 20x, 40x |
| Nosepiece | Reverse angle quintuple, ball bearing, click stops |
| Condenser | Flip-top Abbe, NA 1.25, aspheric lens |
| Fine focus | 0.3 mm per rotation |
| Stage | Ceramic double plate, 200 x 160 mm, 76 x 50 mm travel |
| Electrical | 100V - 240V AC, 50/60 Hz, voltage stabiliser |
About This Product
This histopathology microscope pairs a trinocular head with five plan achromatic objectives up to 40x and a flip-top Abbe condenser. Its LED illumination runs on a built-in rechargeable battery for cordless use, with a universal mains input and a built-in voltage stabiliser. The single mould stand is made with anti rust materials and has an extended base, and the ceramic stage has a double specimen holder.
Frequently Asked Questions
Which objectives does the Trinocular LED Cordless Histopathology Microscope have?
Infinity corrected plan achromatic 2.5x, 4x, 10x, 20x and 40x (spring loaded), antifungal coated.
Can it run without mains power?
Yes. The LED illumination has a built-in rechargeable battery for cordless operation.
Related: Laboratory Microscope, Binocular LED Cordless Histopathology Microscope and Trinocular Cordless LED Microscope.
For a quotation on the Trinocular LED Cordless Histopathology Microscope, contact Didactic Lab.
