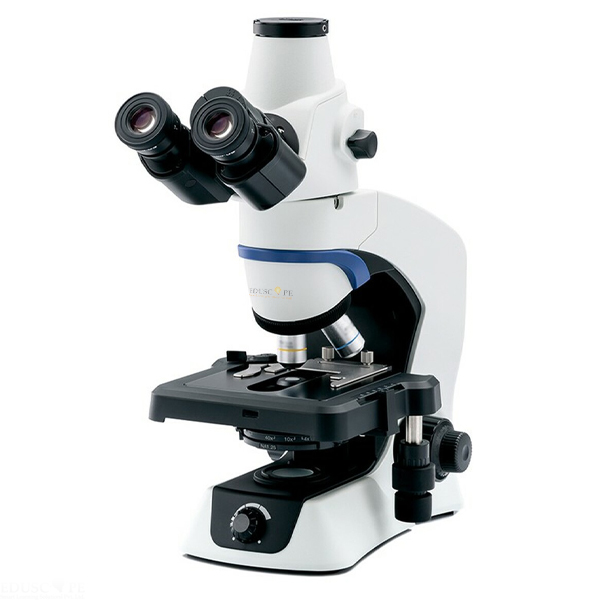

Trinocular Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-LM-11157
Quick Answer: The Trinocular Microscope has infinity plan achromat 4X to 100X objectives, a 30° trinocular tube switching fully between eyepieces and camera port, and precentred LED illumination for brightfield and darkfield.
Last updated: October 2026
Key Features
- Infinity plan achromat objectives 4X, 10X, 40X and 100X, anti-fungal
- 30° trinocular tube with eyepiece/camera port of 100/0 or 0/100
- 10X eyepieces, field number 20, interpupillary distance 48-75 mm
- Brightfield and darkfield observation
- Fixed quadruple nosepiece with inward tilt
- Fixed stage 211 x 154 mm with wire movement and 76 x 52 mm travel
Technical Specifications
| Specification | Value |
|---|---|
| Objectives | Plan achromat 4X, 10X, 40X, 100X |
| Viewing head | Trinocular, 30°, 100/0 or 0/100 |
| Eyepoint adjustment | 375.0-427.9 mm |
| Coarse focus | 15 mm stroke, 36.8 mm per rotation, torque adjustment, stopper |
| Fine focus | 2.5 µm minimum gradation |
| Stage | 211 x 154 mm, 76 x 52 mm travel, XY stopper |
| Condenser | Abbe NA 1.25, oil immersion, aperture iris diaphragm |
| Illumination | LED, 2.4 W nominal, fixed field diaphragm, precentred |
About This Product
In this microscope the stage moves for focusing, with a 15 mm coarse stroke, a focusing stopper, torque adjustment and a graduated fine focus knob. The trinocular tube sends light either fully to the eyepieces or fully to the camera port, and the eyepoint can be adjusted. Illumination is built in and precentred, using an LED with a fixed field diaphragm, and the Abbe condenser has a built-in aperture iris diaphragm. Export enquiries for the Trinocular Microscope are welcome from Morocco, Kazakhstan, Philippines, Tanzania and Mongolia.
Frequently Asked Questions
Which observation methods does the Trinocular Microscope support?
Brightfield and darkfield.
How does the camera port work?
The trinocular tube switches between 100/0 and 0/100 for eyepieces and camera port.
Related: Laboratory Microscope, Trinocular Biological Microscope, 400x Magnification and Trinocular Cordless LED Microscope.
For a quotation on the Trinocular Microscope, contact Didactic Lab.
