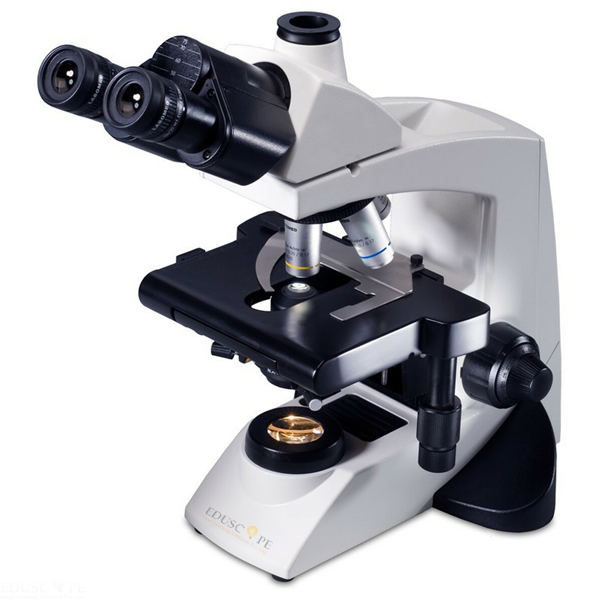

Trinocular Cordless LED Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-LM-11151
Quick Answer: The Trinocular Cordless LED Microscope has a trinocular head, infinity corrected plan achromatic objectives from 4x to 100x oil, and LED illumination powered by a built-in rechargeable battery.
Last updated: October 2026
Key Features
- Trinocular head, 30° inclined, 360° rotatable, interpupillary distance 48-75 mm
- Widefield 10x/20 mm focusable eyepieces with foldable rubber eye guards, accepting a 26 mm reticle
- Infinity corrected plan achromatic objectives 4x, 10x, 40x and 100x oil, spring loaded on 40x and 100x
- Cordless LED illumination with built-in rechargeable battery and variable control
- Abbe condenser with aspheric lens, iris diaphragm and blue daylight filter
- Double plate stage 200 x 160 mm with 78 x 54 mm X/Y travel and rackless X axis
Technical Specifications
| Specification | Value |
|---|---|
| Eyepieces | Widefield 10x/20 mm, focusable, accepts 26 mm reticle |
| Nosepiece | Reverse angle quadruple, ball bearing, click stops |
| Objectives | Plan achromatic infinity 4x, 10x, 40x, 100x oil |
| Condenser | Abbe, NA 1.25, aspheric lens, iris diaphragm, blue filter |
| Stage | 200 x 160 mm double plate, 78 x 54 mm travel |
| Illumination | LED, rechargeable battery, variable; up to 100,000 hours LED life |
| Electrical | 100V - 240V AC, 50/60Hz, built-in voltage stabiliser |
| Stand | Single mould aluminium with hand rests |
About This Product
This microscope can be used without a mains cable, as its LED illumination runs from a built-in rechargeable battery with variable control. It is built on a single mould aluminium stand with hand rests, and focusing is coaxial coarse and fine on a ball drive system. The stage has a hard coated surface, low drive right hand controls and a double specimen holder clip, and the eyepieces and objectives are antifungal. The Trinocular Cordless LED Microscope is offered to export buyers in Cambodia, Italy, Gambia, Namibia and Madagascar.
Frequently Asked Questions
How is the Trinocular Cordless LED Microscope powered?
The LED illumination runs from a built-in rechargeable battery, and the unit takes a universal 100V - 240V AC, 50/60Hz input.
What is the stage travel?
The 200 x 160 mm double plate stage has an X/Y travel range of 78 x 54 mm.
Related: Laboratory Microscope, Trinocular LED Cordless Histopathology Microscope and Binocular Cordless LED Microscope.
For a quotation on the Trinocular Cordless LED Microscope, contact Didactic Lab.
