LED Binocular Biological Microscope, 1000x Magnification Manufacturer,Supplier and Exporter in India
Product Code : EL-LM-11147

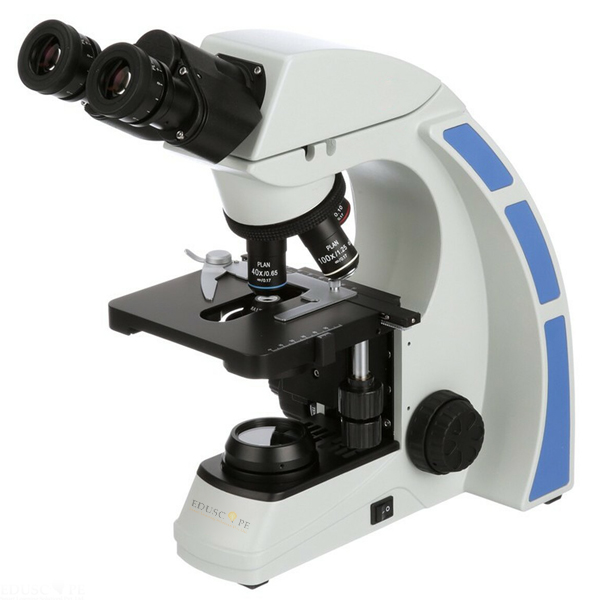

Quick Answer: The LED Binocular Biological Microscope, 1000x Magnification is a binocular microscope with infinity plan objectives from 4x to 100x oil, a 30° inclined head and 3 watt LED illumination.
Last updated: October 2026
Key Features
- Binocular head inclined 30°, 360° rotatable, interpupillary distance 48-75mm
- Plan 10x eyepieces with 20mm field of view, diopter adjustment and a pointer in one eyepiece
- Infinity plan objectives 4x, 10x, 40xR and 100xR oil, the R objectives spring-loaded
- 3 watt LED with variable intensity and a universal 110v-240v power supply
- Coaxial focusing with tension control, upper limit stop, metal gears and a brass fine focus gear
- Mechanical stage 140 x 132mm with 76 x 50mm X-Y movement
Technical Specifications
| Specification | Value |
|---|---|
| Eyepieces | Plan 10x, 20mm field of view, diopter adjustment, lockable, accept a 21mm reticle |
| Viewing head | Binocular, inclined 30°, 360° rotatable, IPD 48-75mm |
| Nosepiece | Reversed, quadruple, ball bearing with rubber grip |
| Objectives | Infinity plan 4x, 10x, 40xR, 100xR oil (R spring-loaded) |
| Condenser | N.A. 1.25 Abbe, with options for phase and darkfield sliders |
| Illumination | 3 watt LED, variable intensity |
| Power supply | Universal, 110v-240v |
| Focusing | Coaxial, tension control, upper limit stop, brass fine focus gear |
| Stage | Mechanical, 140 x 132mm, X-Y range 76 x 50mm |
| Dimensions (LxWxH) | 387mm x 196mm x 391mm |
About This Product
This microscope reaches 1000x magnification with its 10x eyepieces and the 100x oil objective. The upper limit stop on the coaxial focusing helps prevent accidental damage to slides, and the eyepieces can be locked in to prevent tampering. Its Abbe condenser has options for phase and darkfield sliders, and the reversed quadruple nosepiece turns on ball bearings.
Frequently Asked Questions
What objectives does the microscope have?
It has infinity plan 4x, 10x, 40xR and 100xR oil objectives; the 40xR and 100xR are spring-loaded.
What light source does it use?
It uses a 3 watt LED with variable intensity control and a universal power supply for 110v-240v.
What is the stage size?
The mechanical stage measures 140 x 132mm with an X-Y movement range of 76 x 50mm.
Related: Laboratory Microscope, Trinocular Biological Microscope, 400x Magnification and Binocular Cordless LED Microscope.
For a quotation on the LED Binocular Biological Microscope, 1000x Magnification, contact Didactic Lab.
