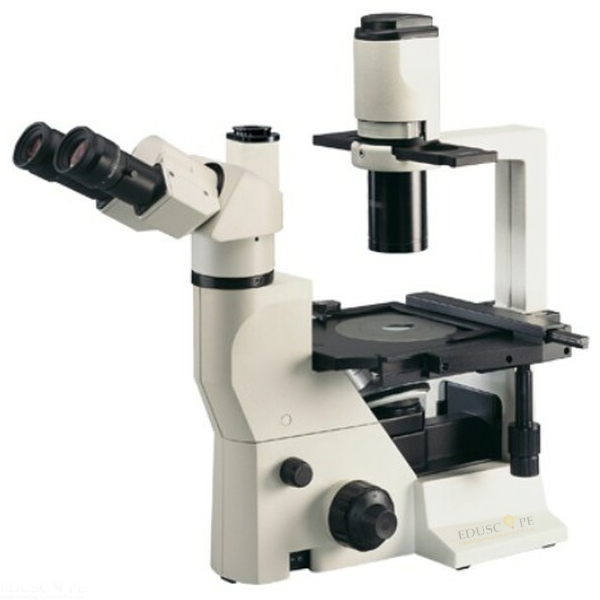

Trinocular Inverted Phase Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-IM-11196
Quick Answer: The Trinocular Inverted Phase Microscope is an inverted phase contrast microscope with a 30° trinocular viewing body and long working distance DIN phase plan achromatic objectives of 4x, 10x and 20x.
Last updated: October 2026
Key Features
- Trinocular viewing body, 30° inclined, IPD 52-75mm
- Long working distance condenser NA 0.30 for phase contrast and brightfield
- Phase contrast slider, telescope and green and blue filters supplied with the condenser
- Quadruple reverse angle ball bearing turret with rubber grip
- 6v 30w transmitted halogen with intensity control, up to 500 hours lamp life
- Fixed plain stage 160mm x 240mm on an aluminium die-cast stand
Technical Specifications
| Specification | Value |
|---|---|
| Viewing body | Trinocular, 30° inclined, IPD 52-75mm |
| Eyepieces | Widefield 10x/22mm, rubber eyeguards, antifungal |
| Objectives | LWD DIN phase plan achromatic 4x, 10x, 20x |
| Nosepiece | Quadruple reverse angle turret |
| Condenser | LWD, NA 0.30, phase contrast/BF |
| Focusing | Coaxial, fine graduation 2.0µm |
| Illumination | Transmitted 6v 30w halogen |
| Power supply | Universal 110V-240V with voltage stabiliser |
| Stage | Fixed plain, 160mm x 240mm |
About This Product
This version has a trinocular viewing body inclined at 30°, with an IPD range of 52-75mm. Its long working distance phase plan achromatic objectives work with a condenser that is suitable for both phase contrast and brightfield. The coaxial focus has a fine graduation of 2.0µm, and the halogen lamp is rated for up to 500 hours.
Frequently Asked Questions
What viewing head does it have?
A trinocular viewing body inclined at 30°, with an IPD range of 52-75mm.
Which observation methods does the condenser support?
The long working distance condenser, NA 0.30, is suitable for phase contrast and brightfield, with a phase contrast slider and telescope.
Related: Inverted Microscope, Binocular Inverted Phase Microscope and Inverted Phase Contrast Microscope Series.
For a quotation on the Trinocular Inverted Phase Microscope, contact Didactic Lab.
