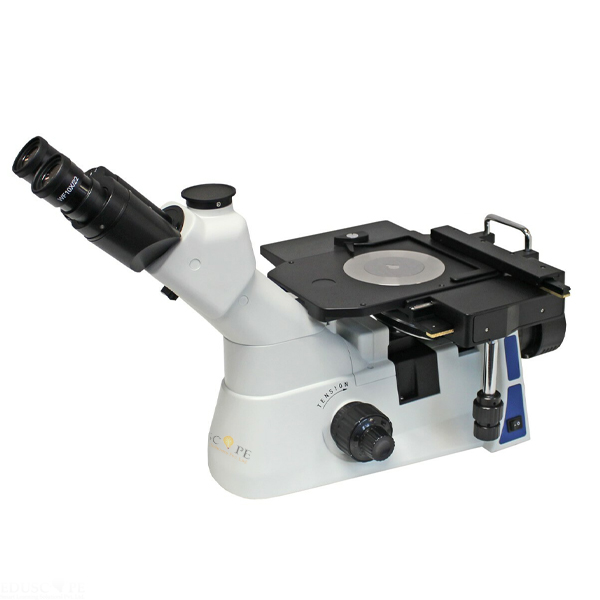

Inverted Metallurgical Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-IM-11200
Quick Answer: The Inverted Metallurgical Microscope is a trinocular inverted microscope with infinity M plan achromat LWD objectives from 5x to semi-Apo 50x, a 5 watt variable LED illuminator and brightfield and polarised observation.
Last updated: October 2026
Key Features
- Infinity M plan achromat LWD objectives 5x, 10x, 20xR and semi-Apo 50x
- Quintuple revolving nosepiece that moves vertically for focusing, with a fixed stage
- Brightfield plus simple polariser and analyser, 360° rotating
- Trinocular head, 45°, interpupillary 54-75 mm, 100% binocular or 20/80 camera split
- 5 watt variable LED, lever type condenser, field and aperture diaphragms, blue, green and frosted filters
- Attachable mechanical stage, 120 mm X by 78 mm Y travel, with 12 mm and 25 mm teardrop inserts
Technical Specifications
| Specification | Value |
|---|---|
| Eyepieces | WF10x/22mm, focusing, roll-down eyeguards |
| Objectives | M Plan Achromat LWD 5x, 10x, 20xR; semi-Apo 50x |
| Observation | Brightfield, simple polariser/analyser |
| Viewing head | Trinocular, 45°, 54-75mm |
| Imaging port | 100% binocular or 20% binocular / 80% camera |
| Illuminator | 5 watt variable LED |
| Stage travel | 120mm (X), 78mm (Y) |
| Stage inserts | 12 mm and 25 mm aperture teardrop plates |
About This Product
In this metallurgical microscope the stage stays fixed and focusing is done by moving the revolving nosepiece vertically with coaxial coarse and fine controls. Specimens can be viewed in brightfield or with the simple polariser and analyser, which rotate through 360°. A filter slider holds blue, green and frosted filters, and the attachable mechanical stage has right hand coaxial controls. The Inverted Metallurgical Microscope is offered to export buyers in Indonesia, Chile, Angola, Botswana, Malta and Seychelles.
Frequently Asked Questions
How does focusing work on the Inverted Metallurgical Microscope?
The stage is fixed and the revolving nosepiece moves vertically, controlled by coaxial coarse and fine knobs.
Which objectives are included?
Infinity M plan achromat LWD 5x, 10x and 20xR, plus a semi-Apo 50x.
Related: Inverted Microscope, Binocular Inverted Metallurgical Microscope and Binocular Inverted Phase Microscope.
For a quotation on the Inverted Metallurgical Microscope, contact Didactic Lab.
