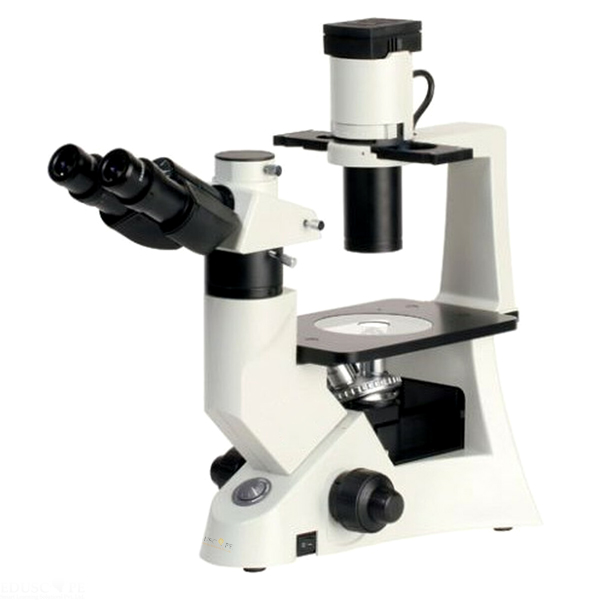

Inverted Phase Contrast Microscope Series Manufacturer,Supplier and Exporter in India
Product Code : EL-IM-11195
Quick Answer: The Inverted Phase Contrast Microscope Series uses an infinity optical system with long working distance objectives, a side facing quintuple nosepiece and a pre-centred phase contrast slider.
Last updated: October 2026
Key Features
- Side facing revolving quintuple nosepiece
- Plan, plan phase and plan fluor objectives available
- Extra wide field focusable 10x eyepieces, 22mm field of view, accept 26mm reticles
- 30° viewing angle, interpupillary distance 48 - 75mm
- Pre-centred phase slider: Ph 1 for 10x and 20x, Ph 2 for 40x, third position for 45mm filters
- Pre-centred 6 volt 30 watt variable halogen illuminator with frosted and heat absorbing filters
Technical Specifications
| Specification | Value |
|---|---|
| Nosepiece | Side facing revolving quintuple |
| Optical system | Infinity, long working distance objectives |
| Eyepieces | Extra wide field 10x, 22mm field of view, rubber eyeguards |
| Viewing head | 30° viewing angle, IPD 48 - 75mm |
| Phase contrast | Pre-centred slider, Ph 1 (10x, 20x), Ph 2 (40x) |
| Illuminator | 6 volt 30 watt variable halogen, pre-centred |
| Condenser | N.A. 0.3, LWD 72mm, aperture diaphragm |
| Working distance without condenser | 150mm |
| Stage | Fixed plain, hard coated, with paired auxiliary stage plates |
About This Product
The fixed plain stage can be widened on both sides with the included paired auxiliary stage plates to hold large specimens, and two metal insert plates and a glass stage insert plate are also supplied. The phase contrast slider is pre-centred, so phase observation needs no adjustment. The condenser, with an NA of 0.3 and a 72mm long working distance, covers magnifications from 4x to 40x, and with it removed the working distance is 150mm. Beyond India, the Inverted Phase Contrast Microscope Series are available for export to North Macedonia, Bosnia and Herzegovina, Estonia, Rwanda and Nicaragua.
Frequently Asked Questions
Which phase annuli are fitted?
The Ph 1 annulus serves the 10x and 20x objectives and the Ph 2 position the 40x; a third position is left empty for 45mm filters.
How large a specimen can the stage take?
The fixed plain stage can be widened on both sides with the included paired auxiliary stage plates to accommodate large specimens.
