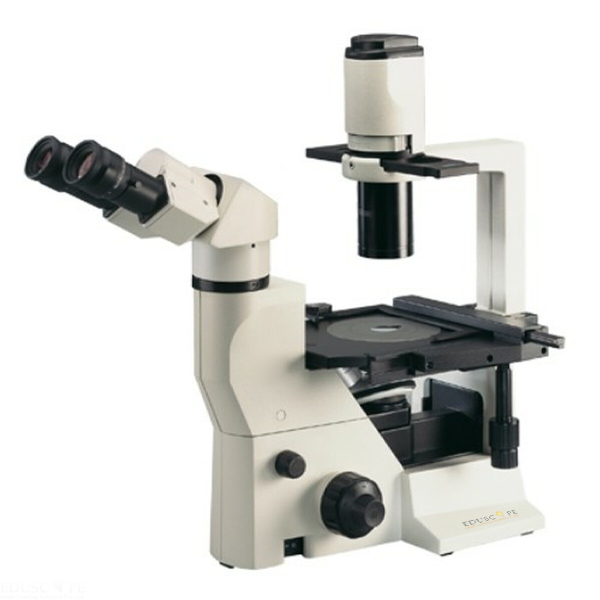

Binocular Inverted Phase Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-IM-11194
Quick Answer: The Binocular Inverted Phase Microscope is an inverted phase contrast microscope with long working distance phase plan achromatic objectives of 4x, 10x and 20x and a 6v 30w halogen illuminator.
Last updated: October 2026
Key Features
- Binocular head, 30° inclined, IPD 52-75mm
- Widefield 10x/22mm eyepieces with rubber eyeguards and antifungal coatings
- Long working distance DIN phase plan achromatic objectives 4x, 10x and 20x on a quadruple reverse angle turret
- Long working distance condenser NA 0.30 for phase contrast and brightfield, with phase slider and telescope
- Transmitted 6v 30w halogen with intensity control, lamp life up to 500 hours
- Fixed plain stage 160mm x 240mm
Technical Specifications
| Specification | Value |
|---|---|
| Viewing body | Binocular, 30° inclined, IPD 52-75mm |
| Eyepieces | Widefield 10x/22mm, rubber eyeguards |
| Nosepiece | Quadruple reverse angle turret, ball bearing |
| Objectives | LWD DIN phase plan achromatic 4x, 10x, 20x |
| Condenser | LWD, NA 0.30, phase contrast slider and telescope, green and blue filters |
| Focusing | Coaxial coarse and fine, fine graduation 2.0µm |
| Illumination | Transmitted 6v 30w halogen, intensity control |
| Power supply | Universal 110V-240V, built-in voltage stabiliser |
| Stage | Fixed plain, 160mm x 240mm |
| Stand | Aluminium die-cast |
About This Product
This inverted instrument is set up for phase contrast and brightfield work through its long working distance condenser, which comes with a phase contrast slider, a telescope and green and blue filters. Focus is coaxial, with fine focus graduations of 2.0µm. The universal 110V-240V power supply has a built-in voltage stabiliser.
Frequently Asked Questions
Which objectives are supplied?
Long working distance DIN phase plan achromatic objectives of 4x, 10x and 20x, with antifungal coatings.
What lamp does it use?
A transmitted 6v 30w halogen lamp with intensity control and up to 500 hours of lamp life.
Related: Inverted Microscope, Ergonomic Binocular Inverted Phase Microscope and Inverted Phase Contrast Microscope Series.
For a quotation on the Binocular Inverted Phase Microscope, contact Didactic Lab.
