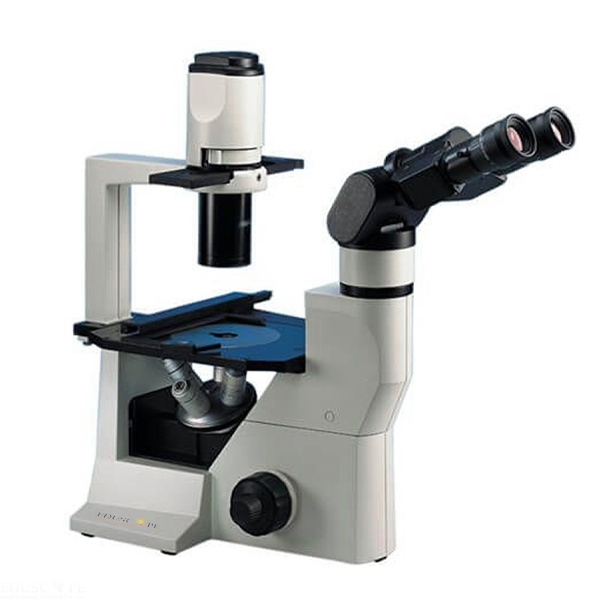

Ergonomic Binocular Inverted Phase Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-IM-11198
Quick Answer: The Ergonomic Binocular Inverted Phase Microscope is an inverted phase contrast microscope whose binocular head inclines from 0° to 25°, with LWD phase plan achromatic 4x, 10x and 20x objectives.
Last updated: October 2026
Key Features
- Binocular head inclinable from 0° to 25°, IPD 52-75mm
- Widefield 10x/22mm eyepieces with rubber eyeguards
- LWD DIN phase plan achromatic objectives 4x, 10x and 20x with antifungal coatings
- Condenser NA 0.30 for phase contrast and brightfield, with slider, telescope and green and blue filters
- 6v 30w halogen with intensity control and up to 500 hours of lamp life
- Fixed plain stage 160mm x 240mm
Technical Specifications
| Specification | Value |
|---|---|
| Viewing body | Binocular, inclinable 0° - 25°, IPD 52-75mm |
| Eyepieces | Widefield 10x/22mm, rubber eyeguards |
| Objectives | LWD DIN phase plan achromatic 4x, 10x, 20x |
| Nosepiece | Quadruple reverse angle turret, ball bearing |
| Condenser | LWD, NA 0.30, phase contrast/BF |
| Focusing | Coaxial, fine graduation 2.0µm |
| Illumination | Transmitted 6v 30w halogen, intensity control |
| Power supply | Universal 110V-240V, built-in stabiliser |
| Stage | Fixed plain, 160mm x 240mm |
About This Product
The binocular head of this model can be inclined anywhere between 0° and 25°. A long working distance condenser with a phase contrast slider makes it suitable for phase contrast and brightfield observation. The die-cast aluminium stand carries a fixed plain stage of 160mm x 240mm.
Frequently Asked Questions
How far does the head incline?
The binocular head is inclinable from 0° to 25°, with an IPD range of 52-75mm.
What lamp is fitted?
A transmitted 6v 30w halogen lamp with intensity control and up to 500 hours of lamp life.
Related: Inverted Microscope, Binocular Inverted Phase Microscope and Inverted Phase Contrast Microscope Series.
For a quotation on the Ergonomic Binocular Inverted Phase Microscope, contact Didactic Lab.
