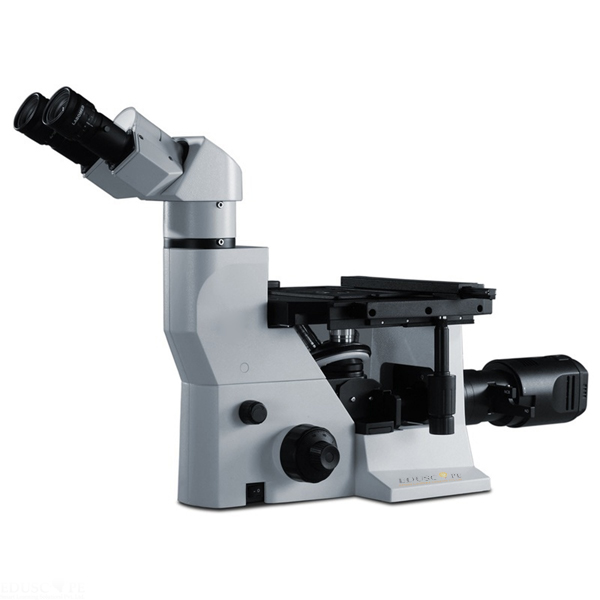

Binocular Inverted Metallurgical Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-IM-11199
Quick Answer: The Binocular Inverted Metallurgical Microscope is a binocular microscope with infinity corrected DIN plan achromatic objectives of 5x, 10x, 20x and 50x and episcopic halogen illumination.
Last updated: October 2026
Key Features
- Infinity corrected DIN plan achromatic objectives 5x, 10x, 20x and 50x; 100x dry objective optional
- Reverse angle quadruple nosepiece with click stops and rubber grip
- Binocular head, 30° inclined, fixed, IPD 52 - 75mm
- Focusable wide field 10x/22mm eyepieces with foldable eye guards
- Episcopic illumination with diffuser, halogen 6V-30W with intensity control
- Fixed stage with specimen holders in 3 types: 38mm, 55mm and 65mm; mechanical stage optional
Technical Specifications
| Specification | Value |
|---|---|
| Objectives | Infinity corrected DIN plan achromatic 5x, 10x, 20x, 50x; optional 100x dry |
| Nosepiece | Reverse angle quadruple, click stops |
| Viewing body | Binocular, 30° inclined, fixed, IPD 52 - 75mm |
| Eyepieces | Wide field 10x/22mm, focusable, antifungal |
| Focusing | Coaxial, tension adjustment, 2um per division |
| Illumination | Episcopic, diffuser, halogen 6V-30W |
| Stage | Fixed, specimen holders 38mm, 55mm, 65mm |
| Stand | Anti-rust material |
About This Product
This inverted microscope uses an episcopic halogen illumination system fitted with a diffuser and an intensity control. Specimens rest on a fixed stage in one of three holders of 38mm, 55mm or 65mm, and a mechanical stage is available as an option. Coaxial coarse and fine focusing has tension adjustment and a graduation of 2um per division. Export enquiries for the Binocular Inverted Metallurgical Microscope are welcome from South Korea, Bangladesh, Fiji, Moldova and Luxembourg.
Frequently Asked Questions
Which objectives are supplied?
Infinity corrected DIN plan achromatic 5x, 10x, 20x and 50x objectives; a 100x dry objective is optional.
What specimen holders come with the stage?
The fixed stage has specimen holders in 3 types: 38mm, 55mm and 65mm.
Related: Inverted Microscope, Binocular Inverted Phase Microscope and Ergonomic Binocular Inverted Phase Microscope.
For a quotation on the Binocular Inverted Metallurgical Microscope, contact Didactic Lab.
