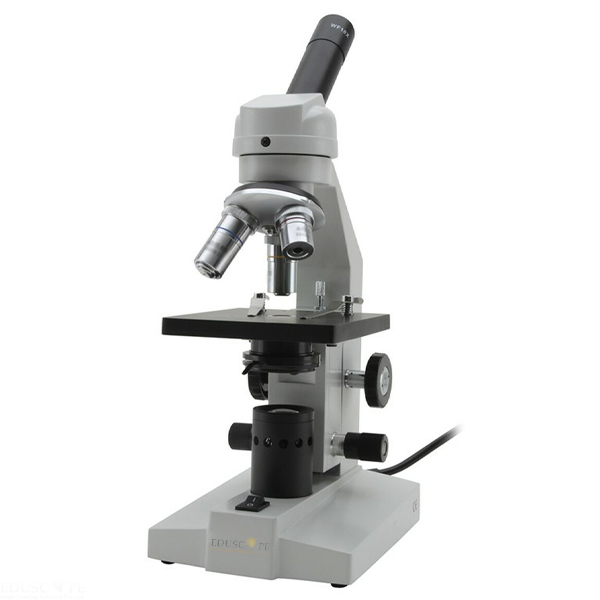

Monocular Microscope Tungsten Illumination Manufacturer,Supplier and Exporter in India
Product Code : EL-SM-11159
Quick Answer: The Monocular Microscope Tungsten Illumination has a 45° inclined, 360° rotating monocular head, achromatic DIN objectives of 4x, 10x and 40x and a 20W tungsten illuminator.
Last updated: October 2026
Key Features
- Monocular head, 360° rotating, with a 45° inclined eyepiece tube
- WF10x/18mm eyepiece
- Achromatic DIN objectives 4x, 10x and 40x (telescopic)
- Condenser N.A. 0.65 with iris diaphragm and filter holder
- Separate coarse and fine focusing knobs
- Stage 120 x 110 mm with sample clips
Technical Specifications
| Specification | Value |
|---|---|
| Head | Monocular, 360° rotating, 45° inclined |
| Eyepiece | WF10x/18mm |
| Objectives | Achromatic DIN 4x, 10x, 40x (telescopic) |
| Condenser | N.A. 0.65, iris diaphragm, filter holder |
| Focusing | Separate coarse and fine knobs |
| Stage | 120 x 110 mm with sample clips |
| Illuminator | 20W tungsten |
About This Product
This microscope lights the specimen with a 20W tungsten lamp. Coarse and fine focusing are on separate knobs, and slides are held on the 120 x 110 mm stage with sample clips. The condenser has an iris diaphragm and a filter holder.
Frequently Asked Questions
What objectives are fitted?
Achromatic DIN objectives of 4x, 10x and 40x, with the 40x telescopic.
What light source does it use?
It uses a 20W tungsten illuminator.
Related: Student Microscope, Monocular LED Microscope Rechargeable and Solar LED Monocular Microscope.
For a quotation on the Monocular Microscope Tungsten Illumination, contact Didactic Lab.
