Monocular LED Microscope Rechargeable Manufacturer,Supplier and Exporter in India

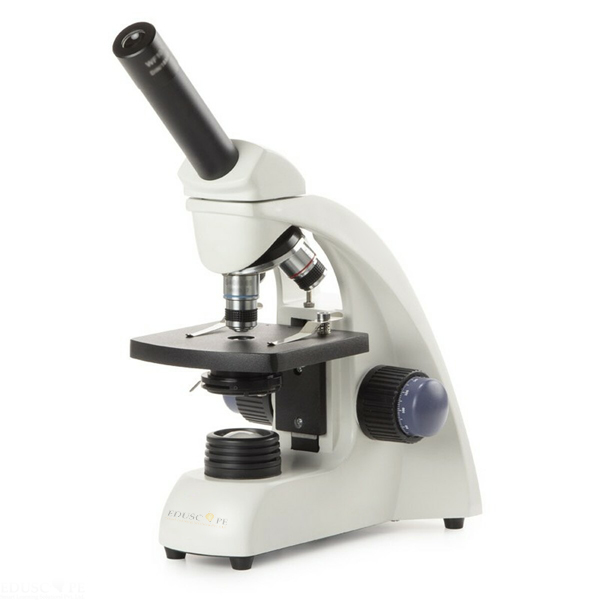

Monocular LED Microscope Rechargeable

Product Code : EL-SM-11160

Quick Answer: The Monocular LED Microscope Rechargeable is a monocular microscope with 1W LED illumination powered by internal rechargeable batteries and achromatic objectives of 4x, 10x and S40x.

Last updated: October 2026

Key Features

  • WF 10x/18 mm eyepiece with pointer, securable to prevent tampering
  • Achromatic objectives 4x/0.10, 10x/0.25 and S40x/0.65 on a reversed revolving nosepiece
  • Anti-fungus treated, anti-reflection coated optics
  • Coaxial coarse and fine focus: 200 graduations of 15 µm, 3 mm per rotation
  • Adjustable rack stop and friction control on the coarse adjustment
  • 1W LED on internal rechargeable batteries with an external 100-240 V charger

Technical Specifications

SpecificationValue
EyepieceWF 10x/18 mm with pointer
Viewing headMonocular, 45° inclined
ObjectivesAchromatic 4x/0.10, 10x/0.25, S40x/0.65
NosepieceRevolving, four reversed objectives, ball bearings
FocusingCoaxial, 15 µm per graduation, 3 mm per rotation, travel approx. 15 mm
Illumination1W LED, internal rechargeable batteries
ChargerExternal, 100-240 V
Stage105 x 105 mm with two non-removable clamps
CondenserN.A. 0.65 with built-in iris diaphragm

About This Product

This microscope runs its 1W LED from internal rechargeable batteries, charged through an external 100-240 V charger and mains adapter. Focusing is coaxial, with a total travel of approximately 15 mm and an adjustable rack stop that helps prevent damage to the sample and objectives. Samples sit on a 105 x 105 mm stage held by two non-removable clamps.

Frequently Asked Questions

How is the LED powered?

By internal rechargeable batteries, with an external 100-240 V battery charger and mains adapter.

How fine is the focusing?

The coaxial fine focus has 200 graduations of 15 µm each and moves 3 mm per rotation.

Related: Student Microscope, Monocular Microscope Tungsten Illumination and Solar LED Monocular Microscope.

For a quotation on the Monocular LED Microscope Rechargeable, contact Didactic Lab.
