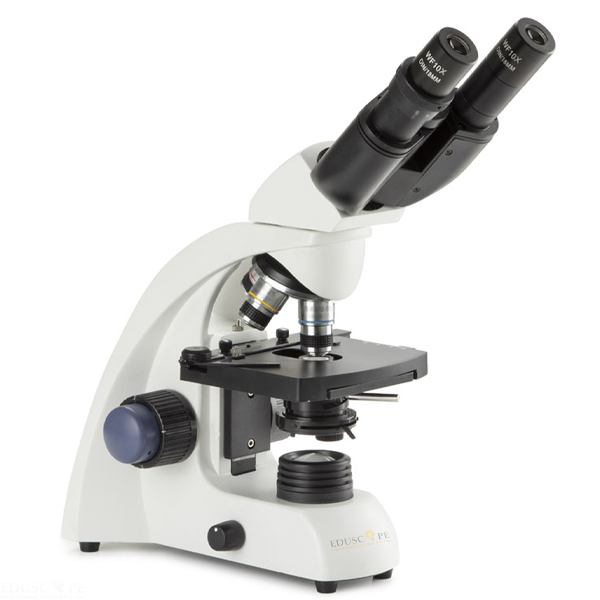

LED Microscope, Mechanical Stage, Rechargeable Manufacturer,Supplier and Exporter in India
Product Code : EL-SM-11163
Quick Answer: The LED Microscope, Mechanical Stage, Rechargeable is offered as a binocular microscope with 45° inclined tubes or a trinocular with 30° tubes, and runs on internal rechargeable batteries.
Last updated: October 2026
Key Features
- Binocular head with 45° tubes or trinocular head with 30° tubes
- Interpupillary distance 48-75 mm and ±5 diopter adjustment on the left tube
- Achromatic objectives 4x/0.10, 10x/0.25 and S40x/0.65 on a reversed revolving nosepiece
- 115 x 100 mm stage with integrated 55 x 20 mm X-Y mechanical stage
- Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
- 1W illumination on internal rechargeable batteries with an external 100-240 V charger
Technical Specifications
| Specification | Value |
|---|---|
| Viewing head | Binocular 45° or trinocular 30° |
| Interpupillary distance | 48-75 mm |
| Diopter adjustment | ±5 on left tube |
| Eyepieces | WF 10x/18 mm, securable |
| Objectives | Achromatic 4x/0.10, 10x/0.25, S40x/0.65 |
| Stage | 115 x 100 mm with 55 x 20 mm X-Y mechanical stage |
| Focusing | Coaxial, 15 µm per graduation, 3 mm per rotation, travel approx. 15 mm |
| Condenser | Abbe N.A. 1.25, height adjustable, iris diaphragm |
| Illumination | 1W, internal rechargeable batteries |
| Charger | External, 100-240 V |
About This Product
Slides are moved with the X-Y mechanical stage built into the main stage. Coaxial coarse and fine adjustments have 200 graduations of 15 µm, and an adjustable rack stop helps prevent damage to the sample and objectives. The eyepieces can be secured to prevent tampering.
Frequently Asked Questions
Which viewing heads are offered?
A binocular head with 45° inclined tubes or a trinocular head with 30° inclined tubes.
How is it powered?
By internal rechargeable batteries with an external 100-240 V battery charger and mains adapter.
Related: Student Microscope, Monocular LED Microscope Rechargeable and Scope Microscope.
For a quotation on the LED Microscope, Mechanical Stage, Rechargeable, contact Didactic Lab.
