Binocular LED Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-SM-11166

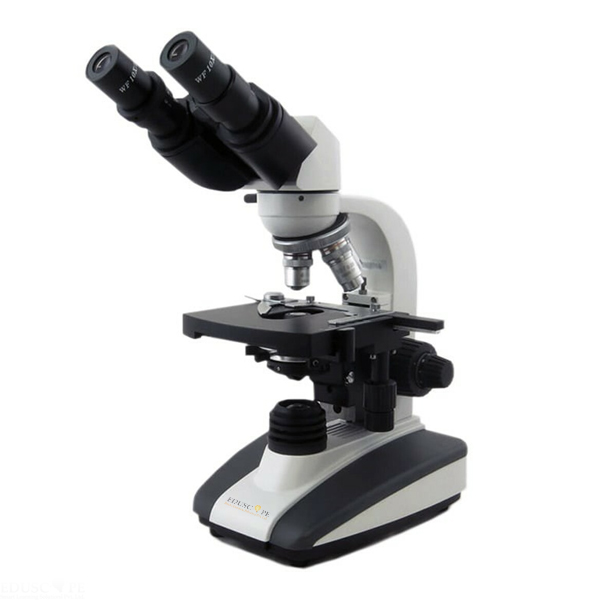

Quick Answer: The Binocular LED Microscope is a binocular microscope with a 45° inclined head that rotates 360°, DIN objectives up to 100xR oil and a built-in low position mechanical stage.
Last updated: October 2026
Key Features
- Binocular head rotating 360°, inclined at 45°
- Reversed quadruple nosepiece with colour coded, parfocal and parcentred DIN objectives 4x, 10x, 40xR and 100xR oil
- Locked-on 10x wide-field eyepieces with calibrated pointer (18mm lens)
- 1.25 N.A. Abbe condenser with iris diaphragm
- Built-in mechanical stage with X-Y control in 1mm increments
- Positive stops at both ends of focus travel
Technical Specifications
| Specification | Value |
|---|---|
| Eyepieces | 10x wide field (pair), locked-on, calibrated pointer |
| Viewing head | Binocular, 45° inclined, 360° rotating |
| Nosepiece | Reversed, quadruple |
| Objectives | DIN 4x, 10x, 40xR, 100xR (oil), R = retractable |
| Condenser | 1.25 N.A. Abbe, iris diaphragm |
| Focusing | Coaxial coarse and fine knobs |
| Illumination | LED, built-in, on/off switch |
| Stage | Built-in low position mechanical stage |
About This Product
Focusing uses coaxial coarse and fine knobs, with positive stops at both ends of travel to prevent damage to delicate specimens or optics, and a tension adjustment that stops stage drift. The Abbe condenser iris is used to adjust contrast and resolution. An instruction manual and a dust cover are included. Beyond India, the Binocular LED Microscope is available for export to Georgia, Belize, Ecuador, Sudan, Bosnia and Herzegovina and Gabon.
Frequently Asked Questions
What does R mean on the objectives?
R stands for retractable; the 40xR and 100xR objectives are retractable.
What is included?
An instruction manual and a dust cover are included.
Related: Student Microscope, Scope Microscope and Monocular Microscope Tungsten Illumination.
For a quotation on the Binocular LED Microscope, contact Didactic Lab.
