Monocular LED Microscope with Vertical Camera Port Manufacturer,Supplier and Exporter in India

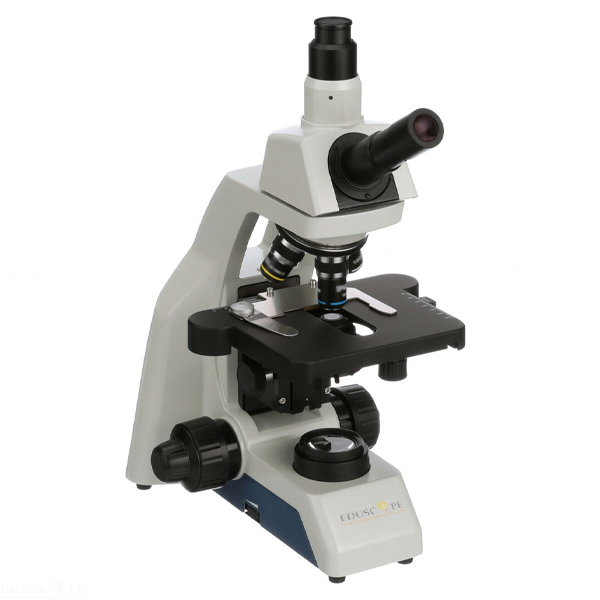

Monocular LED Microscope with Vertical Camera Port

Product Code : EL-SM-11167

Quick Answer: The Monocular LED Microscope with Vertical Camera Port is a monocular microscope with a 30° inclined, 360° rotatable head and a vertical photo tube; the c-mount adapter is sold separately.

Last updated: October 2026

Key Features

  • WF10x/18.5mm eyepiece with pointer, locked in, accepts 19mm reticles
  • Achromat 4x and 10x plus semi-plan 40xR and 100xR oil objectives, spring-loaded
  • N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder
  • Rackless mechanical stage 150mm x 139mm, travel 75mm x 32mm, vernier reading to 0.1mm
  • Variable LED illumination with bulb life rated for 20,000 hours
  • Dust cover, immersion oil and instruction manual included

Technical Specifications

SpecificationValue
EyepieceWF10x/18.5mm, pointer, locked in, accepts 19mm reticles
Optical systemDIN, f=160mm, anti-mould
Viewing headMonocular, 30° inclined, 360° rotatable, vertical camera port
NosepieceRear facing quadruple, ball bearing, click stops
ObjectivesAchromat 4x, 10x; semi-plan 40xR, 100xR oil
CondenserN.A. 1.25 Abbe, rack and pinion, iris diaphragm
StageRackless mechanical, 150mm x 139mm, travel 75mm x 32mm
IlluminationVariable LED, rated 20,000 hours
FocusingCoaxial, adjustable tension, all metal gears
Dimensions (LxWxH)255mm x 198mm x 368mm

About This Product

The vertical camera port carries a photo tube for attaching a camera, using a c-mount adapter that is sold separately. The cast alloy aluminium stand has a built-in fixed focus stop for quick focusing while protecting specimens, plus a carry handle and cord hanger. The stage is moved with a right hand control and read on a vernier scale. Export enquiries for the Monocular LED Microscope with Vertical Camera Port are welcome from Bangladesh, New Zealand, Lesotho, Mauritius and Grenada.

Frequently Asked Questions

Is a camera adapter included?

No. The vertical camera port has a photo tube, but the c-mount adapter is sold separately.

What comes with the microscope?

A dust cover, immersion oil and an instruction manual are included.

Related: Student Microscope, Monocular Microscope Tungsten Illumination and Monocular LED Microscope Rechargeable.

For a quotation on the Monocular LED Microscope with Vertical Camera Port, contact Didactic Lab.
