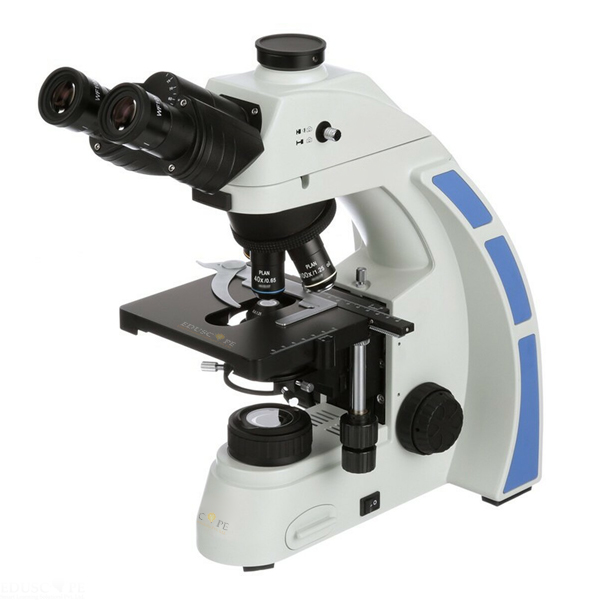

Trinocular Biological Microscope with Plan Objectives Manufacturer,Supplier and Exporter in India
Product Code : EL-LM-11152
Quick Answer: The Trinocular Biological Microscope with Plan Objectives has infinity plan achromat objectives from 4x to 100x oil on a rear facing quintuple nosepiece, with 3-watt LED illumination and a field iris diaphragm.
Last updated: October 2026
Key Features
- Infinity optical system, f = 200 mm, anti-mould
- Plan achromat objectives 4x, 10x, 40xR and 100xR oil, spring-loaded on 40xR and 100xR
- Rear facing quintuple ball bearing nosepiece with click stops; quadruple also available
- Trinocular head, 30° inclined, 360° rotatable, with 180° eyepoint height adjustment
- WF 10x/20 mm focusing eyepieces that lock in and accept a reticle
- Rackless mechanical stage 150 x 110 mm with 76 x 50 mm X-Y movement
Technical Specifications
| Specification | Value |
|---|---|
| Optical system | Infinity, f = 200 mm |
| Objectives | Plan achromat 4x, 10x, 40xR, 100xR oil |
| Eyepieces | WF 10x/20 mm, focusing, accept 26.5 mm reticle |
| Interpupillary distance | 50mm-75mm |
| Stage | Rackless, 150 x 110 mm, 76 x 50 mm X-Y |
| Condenser | N.A. 1.25 Abbe, aperture diaphragm, filter holder |
| Illumination | 3-watt LED, variable, field iris diaphragm; rated over 25,000 hours |
| Power | Universal, 110v-240v |
| Stand | Cast alloy aluminium |
| Dimensions (L x W x H) | 294 x 199 x 397 mm |
About This Product
This microscope uses an infinity optical system with plan achromat objectives up to 100x oil, carried on a rear facing quintuple nosepiece. The trinocular head turns through 360°, and its eyepoint height can be adjusted through 180° for users of different builds. Focusing is coaxial with tension control, an upper limit stop, all metal gears and a brass fine focus gear, and a dust cover, immersion oil and manual are included. Beyond India, the Trinocular Biological Microscope with Plan Objectives are available for export to Angola, Central African Republic, Bahrain, Uruguay, Ghana and Iran.
Frequently Asked Questions
What objectives are fitted to the Trinocular Biological Microscope with Plan Objectives?
Infinity plan achromat 4x, 10x, 40xR and 100xR oil, with the 40xR and 100xR spring-loaded.
How long is the LED rated for?
The 3-watt LED is rated for over 25,000 hours of continued use.
Related: Laboratory Microscope, LED Microscope Series, Plan Objectives and Trinocular Biological Microscope, 400x Magnification.
For a quotation on the Trinocular Biological Microscope with Plan Objectives, contact Didactic Lab.
