Unsymmetrical Bending Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-SELE-11241
Quick Answer: The Unsymmetrical Bending Apparatus is used to study deflections in unsymmetrical bending of an 80cm angle section cantilever whose principal axis can be set at any angle.
Last updated: October 2026
Key Features
- Angle section 1 x 1 x 1/8 inch (or metric equivalent), 80cm long, as a cantilever
- Beam clamped at one end so its principal axis can be inclined at any angle
- Vertical load applied at the free end
- Horizontal and vertical deflection of the free end measured
- Dial gauge with 25 mm travel and magnetic base
- Supporting stand and set of weights supplied
Technical Specifications
| Specification | Value |
|---|---|
| Beam | Angle section, 1 x 1 x 1/8 inch |
| Length | 80cm |
| Dial gauge | 25 mm travel, magnetic base |
| Supplied with | Supporting stand, set of weights |
About This Product

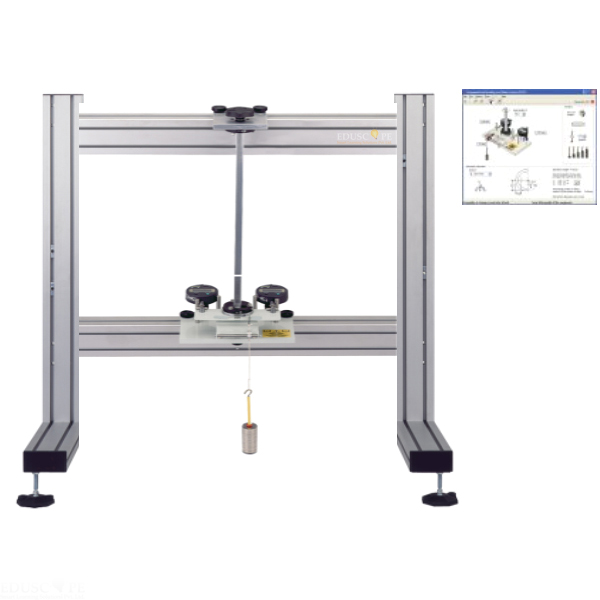

The apparatus is used for experimental and analytical study of deflections when a cantilever beam bends unsymmetrically. The angle section is clamped at one end in a position that sets its principal axis at the chosen angle to the horizontal and vertical planes, and the vertical load at the free end produces both horizontal and vertical deflections, measured with the dial gauge.
Frequently Asked Questions
What beam section is used?
An angle of 1 x 1 x 1/8 inch, or the metric equivalent, 80cm long, mounted as a cantilever.
What is supplied with the apparatus?
A supporting stand, a set of weights and a dial gauge with 25 mm travel and magnetic base.
Related: Structural Engineering Lab Equipment, Pin Join Truss Apparatus Data Acquisition and Behavior of Column and Struts Apparatus.
For a quotation on the Unsymmetrical Bending Apparatus, contact Didactic Lab.
