Portal Frame Apparatus with Data Acquisition

Product Code : EL-SELE-11246

Quick Answer: The Portal Frame Apparatus with Data Acquisition is used to load a specimen portal frame to plastic collapse, finding its points and modes of failure with screw-driven load cells and deflection indicators.

Last updated: October 2026

Key Features

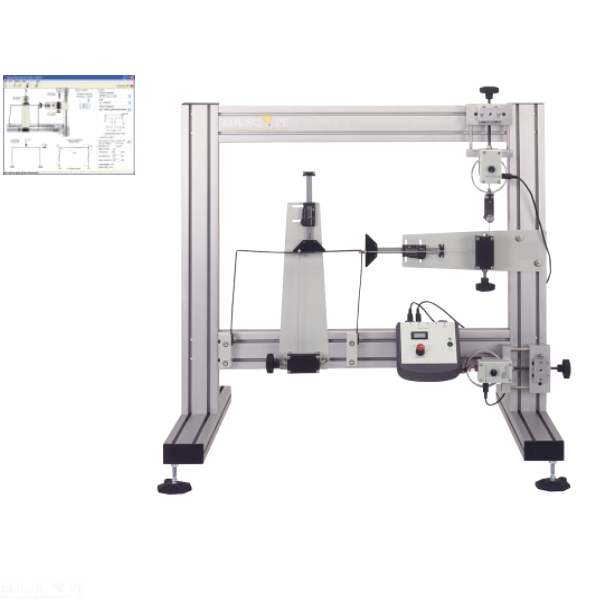

  • Horizontal and vertical screw mechanisms with electronic load cells
  • Single or combined loads set by arranging the screw mechanisms
  • Two long-travel digital deflection indicators measure deformation
  • Load cells connect to a Digital Force Display showing horizontal and vertical loads
  • Fits onto the Structures Test Frame
  • Packs of 12 extra specimen portal frames available separately

About This Product

Students fix a specimen portal frame, two uprights with a cross-beam at the top, to the bottom crosspiece of the test frame and load it by adjusting the screw mechanisms. They monitor the collapse load and deformations and note where plastic hinges form, continuing until the frame reaches the fully plastic condition. The Plastic Bending of Beams experiment is recommended first to cover plastic deformation and form factor.

Frequently Asked Questions

Are spare specimens available?

Yes, packs containing 12 extra specimen portal frames are available separately.

How are the loads measured?

Electronic load cells on the screw mechanisms connect to a Digital Force Display that shows the horizontal and vertical loads.

Related: Structural Engineering Lab Equipment, Pin Join Truss Apparatus Data Acquisition and Unsymmetrical Bending Apparatus.

For a quotation on the Portal Frame Apparatus with Data Acquisition, contact Didactic Lab.
