Pin Join Truss Apparatus Data Acquisition Manufacturer,Supplier and Exporter in India
Product Code : EL-SELE-11243
Quick Answer: The Pin Join Truss Apparatus Data Acquisition lets students build pin-jointed frameworks from stainless steel members, load them with a load cell and read member strains on a digital strain bridge.
Last updated: October 2026
Key Features
- Stainless steel members that join by slotting into bosses
- Strain gauge on each member, connected to a digital strain bridge
- Load cell applies loads at various angles; extra load cells available
- Pivoting support and pivoting and rolling support
- Digital deflection indicator
- Storage trays for members and for joint bosses
About This Product

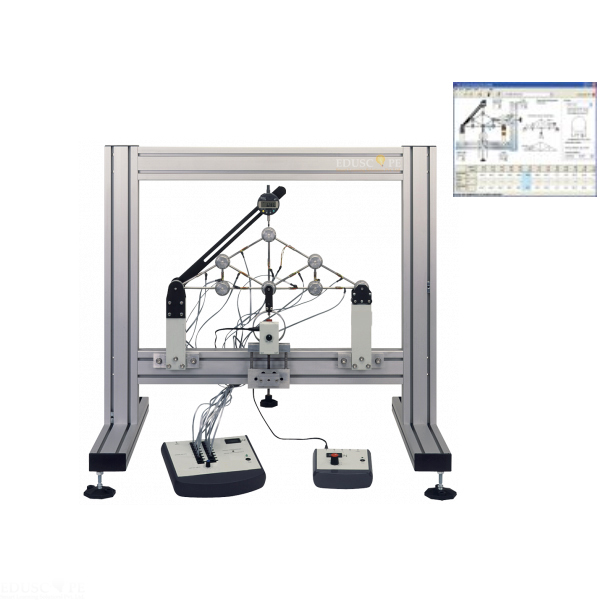

Students assemble a wide selection of pin-jointed frameworks on the Structures Test Frame and load them through the load cell, which reads the applied load when connected to a Digital Force Display. The deflection indicator and the strain bridge readings let students calculate the forces in the members. Structures Software can extend the work with virtual experiments, and an Automatic Data Acquisition Unit is offered as an option.
Frequently Asked Questions
How are member forces found?
Each member carries a strain gauge read on the digital strain bridge, and students calculate the member forces from the strains.
Can loads be applied at more than one point?
Yes, extra load cells are available to apply loads simultaneously.
Related: Structural Engineering Lab Equipment, Portal Frame Apparatus with Data Acquisition and Unsymmetrical Bending Apparatus.
For a quotation on the Pin Join Truss Apparatus Data Acquisition, contact Didactic Lab.
