Shear Force in a Beam Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-SELE-11245

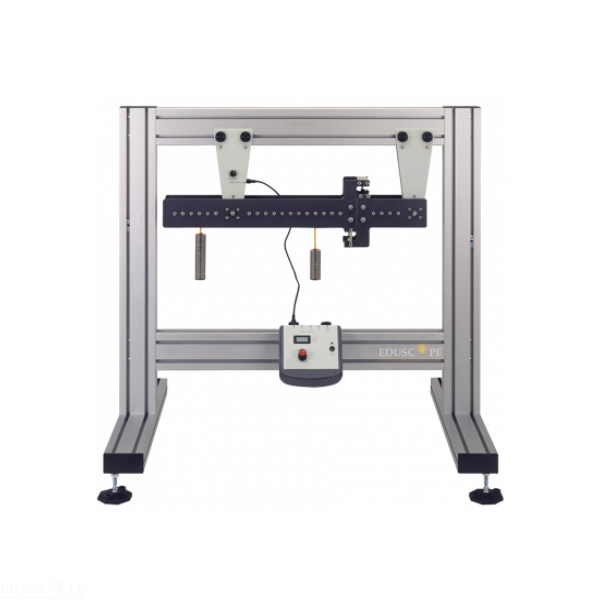

Quick Answer: The Shear Force in a Beam Apparatus is a simply supported beam cut by a pivot, used to investigate the forces within a beam, with a load cell measuring the reaction across the cut.
Last updated: October 2026
Key Features
- Simply supported beam cut by a pivot
- Moment arm bridges the cut onto a load cell
- Loads applied at set positions with hangers and masses
- Digital Force Display shows forces during experiments
- Fixes to the Structures Test Frame
- Operation manual with procedures and sample results
About This Product
Students hang masses at set positions along the beam. To stop the beam collapsing at the cut, a moment arm bridges it onto a load cell, which reacts and measures the force; the readings are shown on the Digital Force Display. Export enquiries for the Shear Force in a Beam Apparatus are welcome from Chile, Venezuela, Burkina Faso, Saint Lucia and Tanzania.
Frequently Asked Questions
How is the force at the cut measured?
A moment arm bridges the cut onto a load cell, which reacts and measures the force, shown on a Digital Force Display.
What does the beam mount on?
The beam fixes to the Structures Test Frame.
Related: Structural Engineering Lab Equipment, Unsymmetrical Bending Apparatus and Pin Join Truss Apparatus Data Acquisition.
For a quotation on the Shear Force in a Beam Apparatus, contact Didactic Lab.
