Mastic Asphalt Tester Manufacturer,Supplier and Exporter in India
Product Code : EL-BATLE-11314

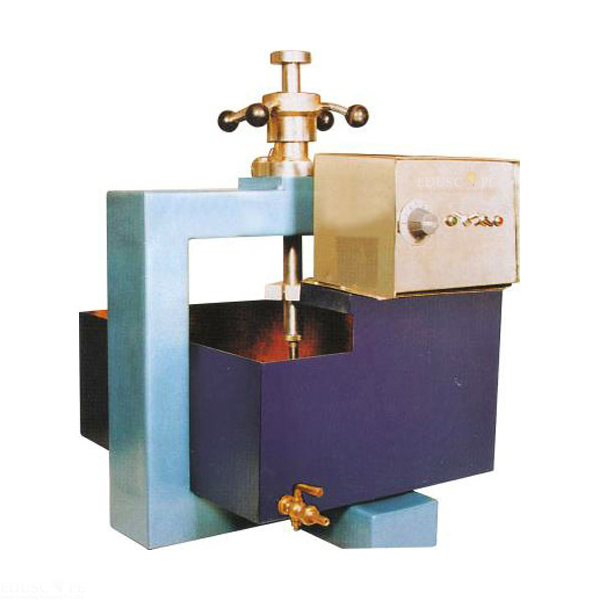

Quick Answer: The Mastic Asphalt Tester determines the hardness number of mastic asphalt for flooring by loading a 6.5 mm pin onto the specimen through a lever, with penetration read on a dial gauge.
Last updated: October 2026
Key Features
- For the hardness number of mastic asphalt for flooring
- Internally insulated cabinet with a water bath and two taps at the base
- Immersion heater with thermostat control at 35°C ± 0.5°C
- 6.5 mm diameter pin loaded by a lever to give 31.7 kg
- Dial gauge 0.01 x 25 mm records pin penetration
Technical Specifications
| Specification | Value |
|---|---|
| Bath temperature | 35°C ± 0.5°C |
| Pin | 6.5 mm diameter |
| Load | 31.7 kg |
| Dial gauge | 0.01 x 25 mm |
| Bath | Water bath with two taps |
About This Product
This tester is used for determining the hardness number of mastic asphalt for flooring. A water bath in the base of an internally insulated cabinet is heated by an immersion heater and held at a set temperature by a thermostat. A lever loads a pin onto the specimen, and a dial gauge records how far the pin penetrates. Export enquiries for the Mastic Asphalt Tester are welcome from Indonesia, Central African Republic, Eswatini, Paraguay and Niger.
Frequently Asked Questions
What load does the Mastic Asphalt Tester apply?
A 6.5 mm diameter pin is loaded through a lever to give 31.7 kg.
At what temperature is the bath held?
35°C ± 0.5°C, controlled by a thermostat.
Related: Bitumen Asphalt testing Lab Equipment, Asphalt Content Tester and Asphalt Mixer Theoretical Density Meter.
For a quotation on the Mastic Asphalt Tester, contact Didactic Lab.
