Standard Penetrometer Manufacturer,Supplier and Exporter in India
Product Code : EL-BATLE-11315

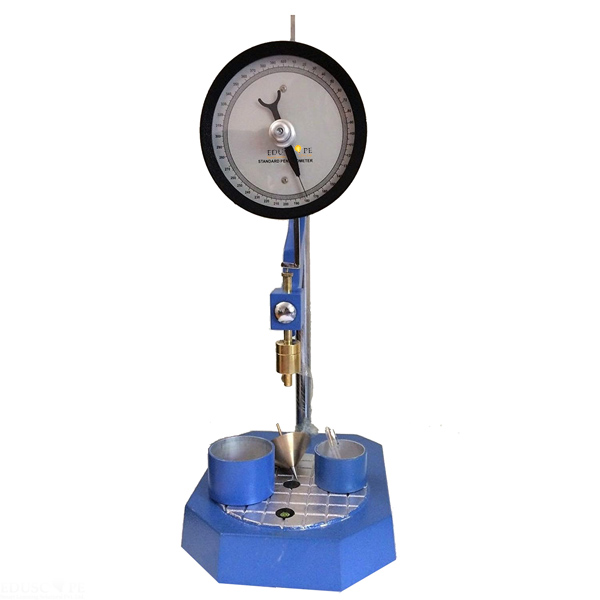

Quick Answer: The Standard Penetrometer is a pillar-mounted penetrometer with a dial graduated to 400 in 1/10 mm divisions, rack and pinion fine adjustment of the needle or cone tip, and a clutch mechanism for resetting.
Last updated: October 2026
Key Features
- Vertical pillar on a base with levelling screws
- Head with dial and plunger rod slides on the pillar and clamps at any height
- Rack and pinion and pointer for fine adjustment of needle or cone tip to the sample
- Dial graduated 400 in 1/10 mm with millimetre subdivisions
- Clutch mechanism for reading penetration and resetting
- Supplied with bitumen penetration needle, 50 g and 100 g ring weights and two sample containers
Technical Specifications
| Specification | Value |
|---|---|
| Dial | 400 divisions of 1/10 mm, mm subdivisions |
| Base | With levelling screws |
| Weights | 50 g and 100 g ring weights, one each |
| Accessories | Bitumen penetration needle, two sample containers |
About This Product
This penetrometer has a head carrying a dial, plunger rod and needle or cone that slides up a vertical pillar and can be clamped at any height. A rack and pinion with pointer brings the tip down to the sample for fine adjustment, and a clutch mechanism is used when reading the penetration and resetting the dial. It is supplied with a bitumen penetration needle, ring weights and two sample containers.
Frequently Asked Questions
What is supplied with the Standard Penetrometer?
A bitumen penetration needle, one 50 g and one 100 g ring weight, and two sample containers.
How is the dial graduated?
It is graduated to 400 in 1/10 mm, with millimetre subdivisions.
Related: Bitumen Asphalt testing Lab Equipment, Standard Tar Viscometer and Travelling Beam Device.
For a quotation on the Standard Penetrometer, contact Didactic Lab.
