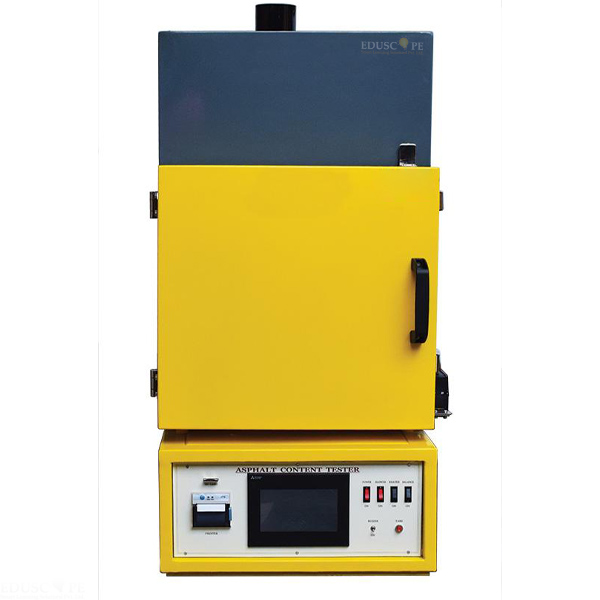

Asphalt Content Tester Manufacturer,Supplier and Exporter in India
Product Code : EL-BATLE-11316
Quick Answer: The Asphalt Content Tester finds the asphalt content of hot mix asphalt and pavement samples by removing the asphalt in an ignition furnace instead of using solvent, with a test time of 20-30 minutes.
Last updated: October 2026
Key Features
- Ignition furnace removes asphalt by heating, not by solvent
- Furnace working temperature 800°C, standard working temperature 538°C
- Testing time 20-30 minutes
- Balance 10 kg x 0.1 g provided
- Specimens up to 4000 g; suggested 1000 g to 1500 g
- 415 V, 50 Hz, 20 ampere three phase supply
Technical Specifications
| Specification | Value |
|---|---|
| Furnace size | 350 mm L x 430 mm W x 300 mm H |
| Working temperature | 800°C |
| Standard working temperature | 538°C |
| Balance | 10 kg x 0.1 g |
| Max specimen | 4000 g |
| Test time | 20-30 minutes |
| Power | 415 V, 50 Hz, 20 A, three phase |
About This Product
This tester determines how much asphalt a hot mix asphalt or pavement sample contains by heating the sample in an ignition furnace so that the asphalt is removed without any solvent. The furnace works up to 800°C, with 538°C as the standard working temperature, and a test takes 20-30 minutes. A 10 kg balance is provided for weighing the specimen. The Asphalt Content Tester is offered to export buyers in Ghana, Estonia, Solomon Islands, Zambia and Albania.
Frequently Asked Questions
Does the Asphalt Content Tester use solvent?
No. The asphalt is removed by heating the sample in an ignition furnace.
What specimen size is suggested?
1000 g to 1500 g, with a maximum of 4000 g.
What power supply is required?
415 V, 50 Hz, 20 ampere three phase AC.
Related: Bitumen Asphalt testing Lab Equipment, Mastic Asphalt Tester and Asphalt Mixer Theoretical Density Meter.
For a quotation on the Asphalt Content Tester, contact Didactic Lab.
