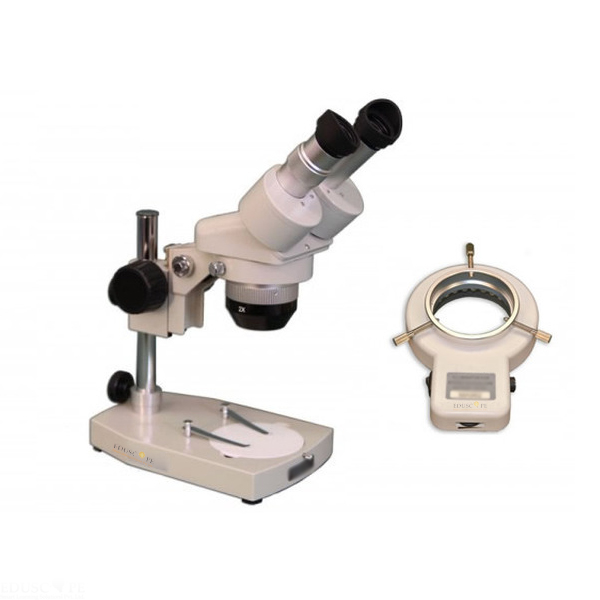

Stereo Microscope on Pole Stand with LED Ring Light Manufacturer,Supplier and Exporter in India
Product Code : EL-SM-11186
Quick Answer: The Stereo Microscope on Pole Stand with LED Ring Light is a binocular stereo microscope with brass paired objectives of 1x, 2x and 3x, giving 10x with 20x or 30x through 10x eyepieces.
Last updated: October 2026
Key Features
- Binocular body of cast aluminium alloy, rotatable 360°
- Brass paired objectives 1x, 2x and 3x
- 10x and 20x, or 10x and 30x, with 10x eyepieces; extended range 10x - 60x
- Working distance 108 mm or 81 mm; field of view 23 mm or 11.5 mm
- 45° eyetubes, dioptric adjustment on the left, interpupillary 54mm - 75mm
- Fits 84.5 mm diameter focus holders
Technical Specifications
| Specification | Value |
|---|---|
| Objectives | Paired, brass, 1x, 2x, 3x |
| Magnification | 10x, 20x or 10x, 30x (10x eyepieces) |
| Extended range | 10x - 60x |
| Field of view | 23mm, 11.5mm |
| Working distance | 108mm, 81mm |
| Eyetube inclination | 45° |
| Interpupillary distance | 54mm - 75mm |
| Mounting | 84.5mm diameter focus holders |
| Optional eyepieces | 5x, 7.5x, 10x, 12.5x, 15x, 20x, 30x |
About This Product
This binocular stereo head is built from cast aluminium alloy and rotates through 360°. Its brass objective pairs give two magnifications with 10x eyepieces, and optional eyepieces from 5x to 30x extend the range from 10x up to 60x. Dioptric adjustment is on the left eyetube, and the head mounts in standard focus holders.
Frequently Asked Questions
What magnification range does the Stereo Microscope on Pole Stand offer?
10x and 20x or 10x and 30x with 10x eyepieces, extendable to 10x - 60x with optional eyepieces.
What are the working distances?
108 mm and 81 mm.
Related: Stereo Microscope, Stereo Microscope with Objectives, Rechargeable LED Illumination and Monoscope Monocular Stereo Microscope.
For a quotation on the Stereo Microscope on Pole Stand with LED Ring Light, contact Didactic Lab.
