Dissecting Microscope LED Magnification Manufacturer,Supplier and Exporter in India
Product Code : EL-SM-11184

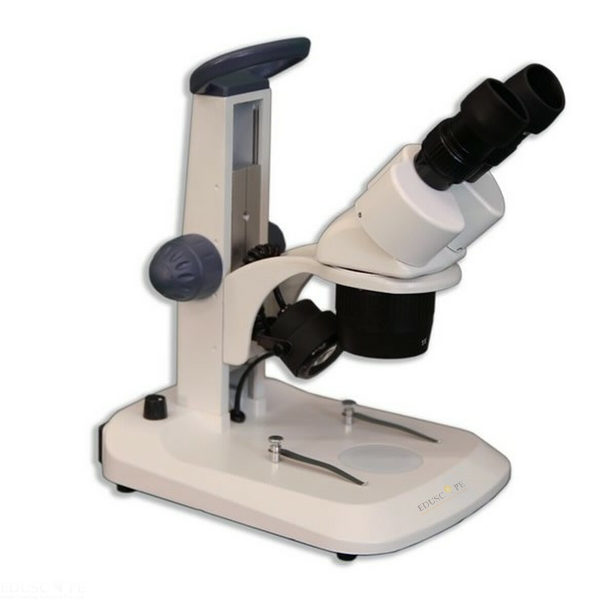

Quick Answer: The Dissecting Microscope LED Magnification is a binocular microscope with 10x and 30x magnification, a 100 mm working distance and 3 W transmitted and incident LED lighting.
Last updated: October 2026
Key Features
- Magnification of 10x and 30x from dual 1x/3x revolving objectives
- Field of view 20 mm or 6.6 mm, working distance 100 mm
- Binocular head with 45° inclined tubes and two diopter adjustments
- Interpupillary distance adjustable between 55 mm and 75 mm
- 3 W transmitted and incident LEDs, usable together and adjusted separately
- Rack and pinion stand with 2 object clamps on the base
Technical Specifications
| Specification | Value |
|---|---|
| Magnification | 10x, 30x |
| Field of view | 20 mm / 6.6 mm |
| Working distance | 100 mm |
| Viewing head | Binocular, 45° inclined tubes, two diopter adjustments |
| Interpupillary distance | 55 mm to 75 mm |
| Eyepieces | Paired WF 10x/20mm |
| Objectives | Dual 1x/3x revolving |
| Illumination | 3 W transmitted and incident LED |
| Stand | Rack and pinion, cast alloy metal, off-white coated |
About This Product
This stereo instrument gives 10x with the 1x objective and 30x with the 3x objective, at a working distance of 100 mm. The transmitted and incident LEDs can be used at the same time, each with its own intensity control. All optical parts are anti-fungus treated, and focus is set with a coarse adjustment that has tension control. Beyond India, the Dissecting Microscope LED Magnification is available for export to Guinea, Lithuania, Lesotho, Central African Republic, Palestine and Kazakhstan.
Frequently Asked Questions
What magnifications does it give?
10x and 30x, using the paired WF 10x/20mm eyepieces with the dual 1x/3x revolving objectives.
Can both lights be used together?
Yes. The 3 W transmitted and incident LED illuminators can be used simultaneously, and their intensities are adjusted separately.
Related: Stereo Microscope, LED Stereo Microscope Magnification and Monoscope Monocular Stereo Microscope.
For a quotation on the Dissecting Microscope LED Magnification, contact Didactic Lab.
