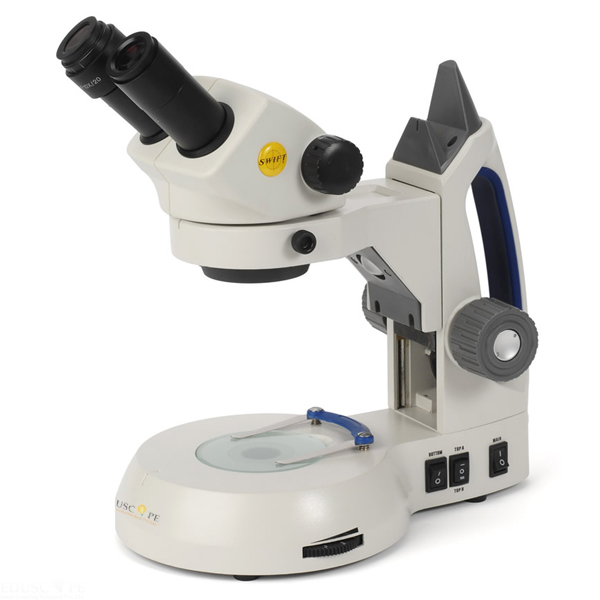

LED Stereo Microscope Magnification Manufacturer,Supplier and Exporter in India
Product Code : EL-SM-11183
Quick Answer: The LED Stereo Microscope Magnification is a stereo microscope with 10x and 30x magnification, a 45° widefield head that rotates 360° and variable LED lighting with 5 light settings.
Last updated: October 2026
Key Features
- 10x and 30x magnification, changed with a rotating dial
- 45° paired widefield eyepieces, interpupillary 55mm to 75mm, right eyepiece diopter
- Head rotates 360° and locks with a thumb screw
- Variable turret (6 LED) and top illumination with 5 light settings
- 80 mm black/white contrast plate and 80 mm frosted glass plate, blue filter
- Rack and pinion focusing with slip clutch and tension adjustment
Technical Specifications
| Specification | Value |
|---|---|
| Magnification | 10x and 30x |
| Eyepieces | Paired widefield, 45° inclined |
| Interpupillary distance | 55mm to 75mm |
| Objectives | Paired, achromatic, parfocal, parcentred |
| Stage plates | 80 mm black/white plastic; 80 mm frosted glass |
| Illumination | Turret (6 LED), top and bottom; 5 settings |
| Frame | Cast metal, grey enamel |
About This Product
This stereo microscope switches between 10x and 30x with a magnification dial and is described for high school classrooms and up. Its LED lighting can be used as turret, top or bottom light, or as turret and bottom or top and bottom together, giving 5 settings. The cast metal frame has a grey enamel finish, and one-touch spring loaded clips hold specimens on the stage.
Frequently Asked Questions
What magnifications does the LED Stereo Microscope Magnification offer?
10x and 30x, changed by rotating the magnification dial.
What lighting options are there?
Five settings: turret, top, bottom, turret and bottom together, or top and bottom together.
Related: Stereo Microscope, Monoscope Monocular Stereo Microscope and Stereo Microscope with Objectives, Rechargeable LED Illumination.
For a quotation on the LED Stereo Microscope Magnification, contact Didactic Lab.
