Product Code : EL-STLE-11250

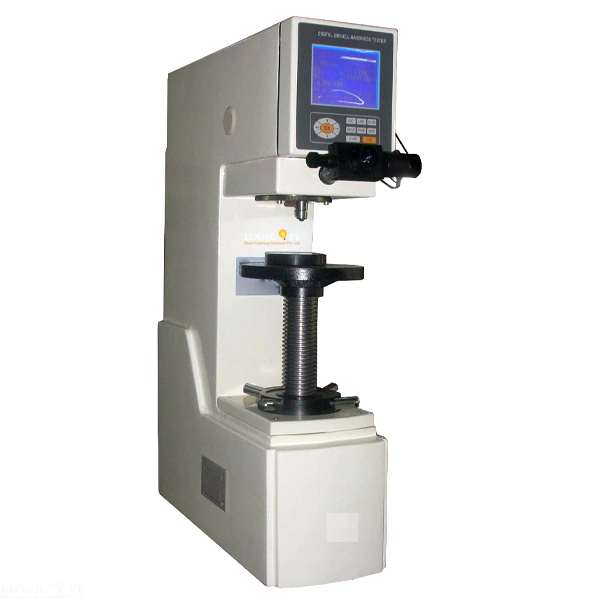

Quick Answer: The Brinell Hardness Tester (Computerized) runs a fully automatic test cycle of load application, holding and unloading, with closed-loop load control and a measuring range of 8 to 650 HBW.
Last updated: October 2026
Key Features
- Fully automatic load application, holding and unloading
- Closed-loop load control with load cell, DC motor and electronic control unit, without mechanical weights
- Test load and dwell time selected by keyboard and LCD screen
- Screen guidance for selecting the 0.102F/D² ratio by material and hardness range
- 20× optical microscope to measure the indentation diameter
- Measuring range of 8 to 650 HBW with direct digital reading
Technical Specifications
| Specification | Value |
|---|---|
| Measuring range | 8 to 650 HBW |
| Load control | Closed loop, load cell and DC motor |
| Test cycle | Fully automatic |
| Display | Large LCD screen |
| Microscope | 20× optical |
| Reading | Direct digital |
About This Product
The test load is applied through a closed-loop control unit made up of a load cell, a DC motor and an electronic measurement and control unit, so the tester works without mechanical dead weights. The indenter, load and other test information are shown on a large LCD screen, where the operator also selects the load and dwell time. The indentation diameter is measured with the 20× optical microscope, and a Brinell hardness calculator helps work out the hardness value. Export enquiries for the Brinell Hardness Tester (Computerized) are welcome from Qatar, Panama, Georgia, Fiji, Morocco and Belize.
Frequently Asked Questions
What is the measuring range of the Brinell Hardness Tester (Computerized)?
It measures from 8 to 650 HBW with direct digital reading.
How is the indentation measured?
The tester is equipped with a 20× optical microscope to measure the diameter of the Brinell indentation, and a Brinell hardness calculator helps with the hardness calculation.
Related: Steel Testing Lab Equipment, Digital Rockwell Hardness Tester and Stirrup Bending Machine.
For a quotation on the Brinell Hardness Tester (Computerized), contact Didactic Lab.
