Load Ring Penetrometer Manufacturer,Supplier and Exporter in India
Product Code : EL-STLE-11342
Quick Answer: The Load Ring Penetrometer measures the bearing strength and degree of compaction of soils with a 1 kN load ring, a T-shaped handle and a 30° end cone.
Last updated: October 2026
Key Features
- T-shaped handle connected to a 1 kN (100 kgf) load ring
- Maximum load pointer on the load ring
- Extension rod with five 100 mm graduations
- 30° end cone with an area of 645 mm²
- Supplied with a calibration chart
- Approximate weight of 4 kg
Technical Specifications
| Specification | Value |
|---|---|
| Load ring capacity | 1 kN (100 kgf) |
| End cone | 30°, 645 mm² area |
| Extension rod | Five 100 mm graduations |
| Weight | 4 kg approx |
About This Product

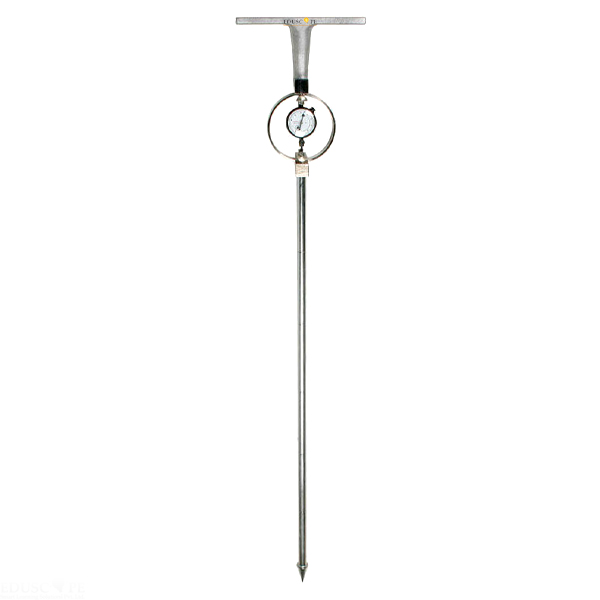

The apparatus is used to measure the bearing strength and compaction degree of soils. A T-shaped handle is connected to a 1 kN load ring with a maximum load pointer, and an extension rod is marked with five 100 mm graduations. The 30° end cone has an area of 645 mm² and a calibration chart is supplied. Export enquiries for the Load Ring Penetrometer are welcome from Niger, Mauritius, Maldives, Trinidad and Tobago, South Africa and Tajikistan.
Frequently Asked Questions
What is the capacity of the Load Ring Penetrometer?
The load ring has a capacity of 1 kN (100 kgf) and a maximum load pointer.
What cone does it use?
A 30° end cone with an area of 645 mm².
Related: Soil Testing lab Equipment, Plate Load Bearing Test Apparatus and Soil Cone Penetrometer.
For a quotation on the Load Ring Penetrometer, contact Didactic Lab.
