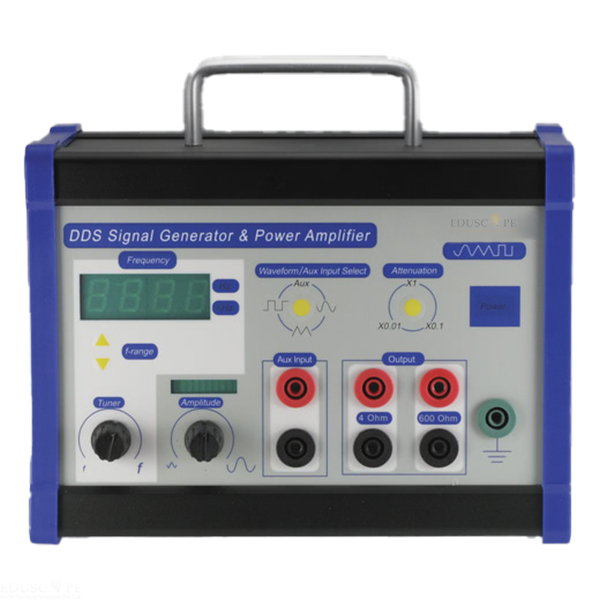

Signal Generator And Amplifier Manufacturer,Supplier and Exporter in India
Product Code : EL-SAW-10631
Quick Answer: This signal generator and amplifier produces sine, rectangular and triangular waveforms in six frequency decades, read on a digital display, and its amplifier has a voltage gain of 100.
Last updated: October 2026
Key Features
- Frequency range 0.1 Hz to 99.9 kHz in six decades, read on a digital display
- Sine, rectangular and triangular waveforms
- Maximum power output of 4.5W over the whole frequency range
- Amplitude variable from zero to maximum in 256 steps, shown on a 10 segment bar graph
- Output can withstand a prolonged short circuit
- Detachable power lead for storage
Technical Specifications
| Specification | Value |
|---|---|
| Frequency range | 0.1 Hz to 99.9 kHz, six decades |
| Frequency accuracy | 0.01% (100 ppm) |
| High impedance output | Max. 17V peak to peak, 600 ohm source |
| Low impedance output | 6V RMS at 4 ohm |
| Max. power output | 4.5W into 4 ohm |
| Amplifier voltage gain | 100 |
| Frequency response | DC to 100kHz, -3 dB |
| Attenuation | x1, x0.1, x0.01, ±1% (600 ohm output only) |
| Electric supply | 220V to 240V, 50Hz |
| Weight | Approx. 2.05kg without power cord |
| Dimensions | Approx. 210 x 155 x 118mm |
About This Product
The unit combines a waveform generator with a power amplifier. The 600 ohm output gives up to 17V peak to peak and has three attenuation settings, while the 4 ohm output delivers up to 4.5W. All control settings except amplitude are stored and updated when changed, and the generator output floats with respect to ground. Beyond India, the Signal Generator And Amplifier is available for export to Venezuela, Albania, Cameroon, South Korea and Lesotho.
Frequently Asked Questions
What waveforms does the unit produce?
It produces sine, rectangular and triangular waveforms from 0.1 Hz to 99.9 kHz.
How much power can it deliver?
A maximum of 4.5W is available over the entire frequency range for all waveforms, with maximum power transfer into a 4 ohm load.
