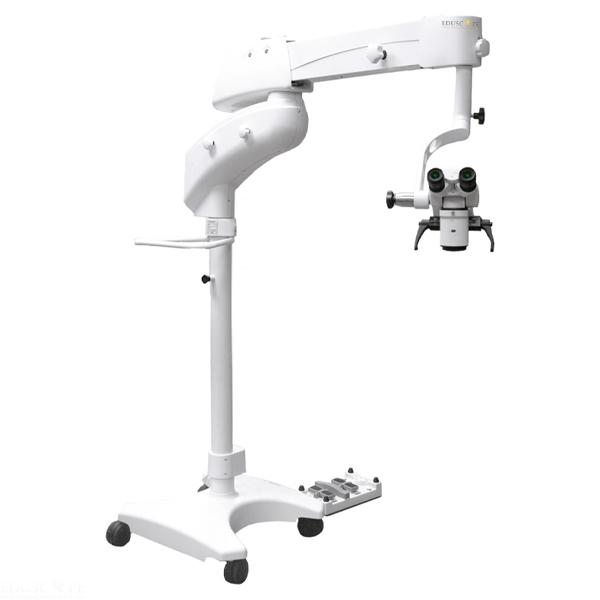

ZOOM Surgical Microscope Motorized Manufacturer,Supplier and Exporter in India
Product Code : EDS-SM-11178
Didactic Lab zoom is a new zoom microscope that allows the user the ability to operate in a continuous magnification range of 3x-24x. The magnification and the motorized focus system are controlled by a set of control handles or a motorized foot pedal control. This allows the operator the freedom to control the magnification level with ease. In addition to the zoom magnification, the Zoom can be equipped with an X-Y System that gives the user the ability to control the optic pod positioning easily at high magnifications.
Features:
Eyepieces: 10x, 12.5x, and 20x
Illumination field: 70mm
Brand: Didactic Lab
Diopter setting: -6 to +6
Minimum Interpupillary Distance: 48 to 78mm for the Inclinable Binocular Head
Objective lens: 200m - 400m
Field of vision: 14-70mm
Dual halogen standard light source with LED display control panel
Illumination brightness in the working area at full power: 80,000 lux (min.)
0-200° Inclinable Head
Xenon (optional)
Vertical Working Height: minimum 0.70m and maximum 1.45m (without XY) (with XY Positioning system, minimum 0.67m and maximum 1.44m)
Microfocus vertical adjustment limit: 40mm.
XY System:
The XY system moves the Optical situation along the X and Y axis of the Horizontal Plane, with a movement of 22.5mm to either side from the central position. Requires the Multifunction Pedal in order to be operated.
Multifunctional Foot Pedal
Controls the following functions:
Motorized microfocusing
Movement of XY system by means of the Footstick
Switches the illumination on and off
Illumination brightness adjusting
Adjusts the magnification of the Zoom system
