Microscope Digital Camera, 2MP Manufacturer,Supplier and Exporter in India
Product Code : EL-DM-11189

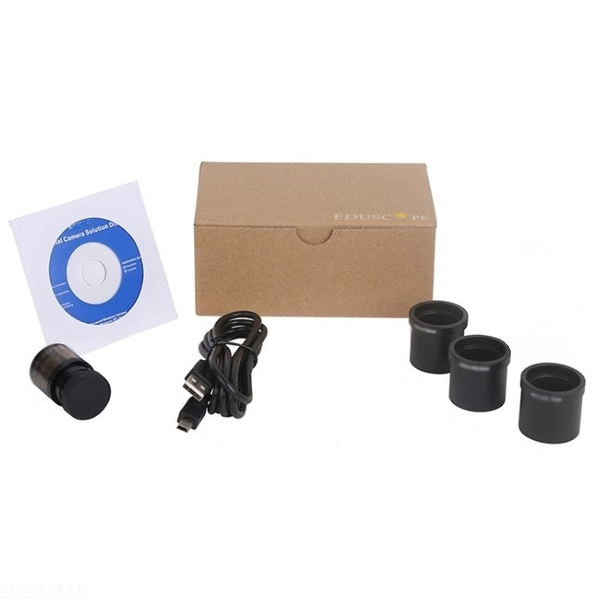

Quick Answer: The Microscope Digital Camera, 2MP is a USB 2.0 eyepiece camera that fits in place of an eyepiece on biological or stereo microscopes, capturing 1600 x 1200 images and video on a PC.
Last updated: October 2026
Key Features
- 2 MP resolution, full image size 1600 x 1200
- Fits the eyepiece tube in place of an eyepiece (23 mm, 30 mm and 30.5 mm)
- USB 2.0 output, powered from the PC USB port
- Automatic white balance, gain, back light and exposure control
- 5 fps at full resolution and 22 fps at 640 x 480
Technical Specifications
| Specification | Value |
|---|---|
| Resolution | 2 MP |
| Full image size | 1600 x 1200 |
| Output | USB 2.0 |
| Power | PC USB |
| Eyepiece tube fit | 23 mm, 30 mm, 30.5 mm |
| Frame rate | 5 fps (1600 x 1200), 22 fps (640 x 480) |
| Audio | No |
| Memory card | No |
About This Product
This camera goes straight into the eyepiece tube of a biological or stereo microscope, taking the place of one eyepiece, and connects directly to a PC for video capture. It draws its power from the PC USB port and sets white balance, gain, back light and exposure automatically. Beyond India, the Microscope Digital Camera, 2MP is available for export to Jordan, Mozambique, Guinea-Bissau, Sierra Leone and São Tomé and Príncipe.
Frequently Asked Questions
Which eyepiece tubes does the Microscope Digital Camera, 2MP fit?
It fits eyepiece tubes of 23 mm, 30 mm and 30.5 mm diameter.
Does it need a separate power supply?
No. It is powered from the PC USB port.
Related: Digital Microscope, Microscope Digital Camera, 5MP and Digital Monocular Microscope, 400x.
For a quotation on the Microscope Digital Camera, 2MP, contact Didactic Lab.
