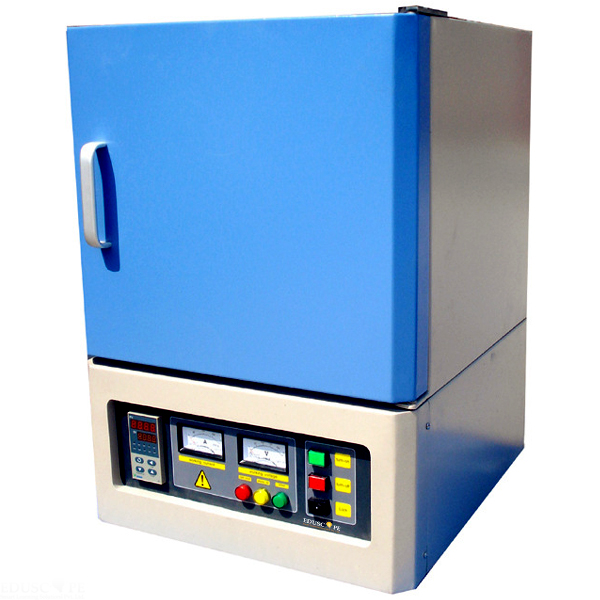

Muffle Furnace Manufacturer,Supplier and Exporter in India
Product Code : EL-MTLE-11467
Quick Answer: The Muffle Furnace is offered with a maximum temperature of 1100°C or 1400°C, with continuous working temperatures of 1000°C and 1300°C, and a microprocessor-based PID temperature controller.
Last updated: October 2026
Key Features
- Maximum temperature of 1100°C or 1400°C
- Heating chamber of ceramic fibreboard (1100°C) or ceramic zirconium board (1400°C)
- Resistive wire elements (1100°C) or silicon carbide rods (1400°C)
- High density ceramic fibre blanket insulation
- Microprocessor PID controller showing set value and process value
- Steel tong and gloves supplied as standard
Technical Specifications
| Specification | Value |
|---|---|
| Maximum temperature | 1100°C or 1400°C |
| Working temperature | 1000°C or 1300°C |
| Heating elements | Resistive wire (1100°C), silicon carbide rods (1400°C) |
| Insulation | High density ceramic fibre blanket |
| Frame and cabinet | Thick steel frame, powder coated cold rolled sheet cabinet |
| Controller | Microprocessor-based PID, displays SV and PV |
| Programmable option | Profile controller with 30 steps for ramp rate and soak time |
| Standard accessories | Steel tong and gloves |
About This Product
The furnace is built on a thick steel frame with a powder coated cold rolled sheet cabinet, and a version in stainless steel 304 sheet is also made. A programmable profile controller with 30 steps for ramp rate and soak time can be fitted. Optional accessories include a PLC-based HMI controller with data logging and a PID controller with an RS232 computer interface. Beyond India, the Muffle Furnace is available for export to Venezuela, Solomon Islands, Senegal, Mali and Japan.
Frequently Asked Questions
What temperatures does the Muffle Furnace reach?
Standard models reach a maximum of 1100°C or 1400°C, with continuous working temperatures of 1000°C and 1300°C respectively.
What is supplied with every furnace?
A steel tong and gloves are supplied as standard accessories.
Related: Material Testing Lab Equipment, Vicker's Hardness Tester and Electronic Spring Tension Machine.
For a quotation on the Muffle Furnace, contact Didactic Lab.
