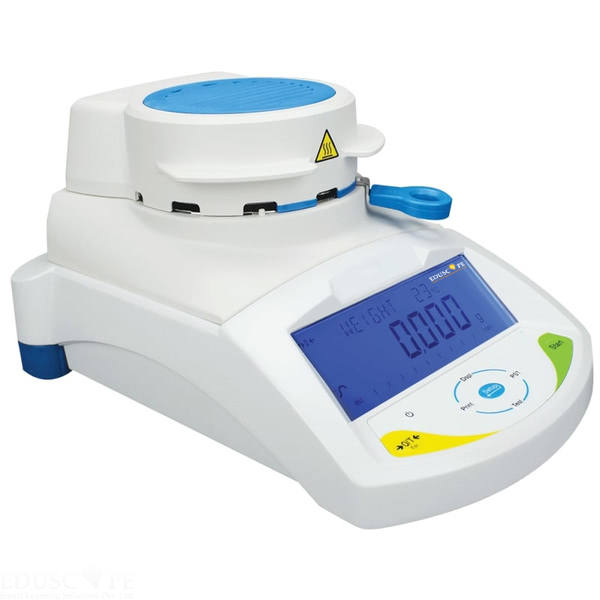

Moisture Analyser, 200g Manufacturer,Supplier and Exporter in India
Product Code : EL-LE-10930
Quick Answer: The Moisture Analyser, 200g has a 200g capacity and heats samples with a single 400W halogen lamp from 50°C to 160°C.
Last updated: October 2026
Key Features
- Capacity 200g, readability 0.01g / 0.05%
- Single 400W halogen lamp, temperature 50°C to 160°C in 1°C steps
- Three heating settings: ramp-up, stepped temperatures and single temperature
- Seven preset drying modes, and testing can start automatically when the lid closes
- Internal memory for 49 programmable settings and 99 test results, plus USB drive storage
- USB and RS-232 interfaces for computers and printers
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 200g |
| Readability | 0.01g / 0.05% |
| Repeatability | 0.02g |
| Pan size | 100mm diameter |
| Heating | Single 400W halogen lamp |
| Temperature range | 50°C to 160°C in 1°C increments |
| Interface | RS-232, USB |
| Weighing units | g, %M, %S, ATRO %M, ATRO %S |
| Operating temperature | 0 to 40°C |
| Construction | Die-cast aluminium |
| Net weight | 6kg |
| Overall dimensions | 250 x 360 x 185mm (w x d x h) |
About This Product
This analyser dries a sample under a halogen lamp and weighs it, with the heating profile chosen from ramp-up, stepped or single temperature settings. An automatic test-setting function recalls stored settings for items that are tested often, so no extra programming is needed. A pan lifter helps place and remove samples, and calibration covers both temperature and weight.
Frequently Asked Questions
How is the sample heated?
A single 400W halogen lamp heats the sample, with the temperature set from 50°C to 160°C in 1°C increments.
How many test results can it store?
Internal memory stores up to 99 test results and 49 user settings, and more can be stored on a USB flash drive.
Does it need software on a computer?
No additional software is needed to take readings. USB and RS-232 interfaces connect it to computers and printers.
Related: Laboratory Equipment, Moisture Analyser and Safety Goggles.
For a quotation on the Moisture Analyser, 200g, contact Didactic Lab.
