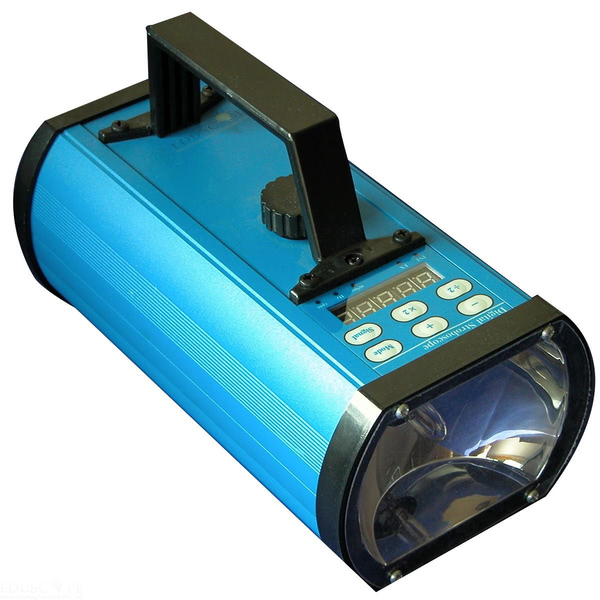

Xenon Stroboscope Manufacturer,Supplier and Exporter in India
Product Code : EL-LAO-10707
Quick Answer: The Xenon Stroboscope gives an intense xenon flash that can be synchronised with a moving target, with the flashing frequency shown on a 7-segment LED display.
Last updated: October 2026
Key Features
- Intense xenon flash of approximately 10000 lux
- Rotating encoder for rapid adjustment of flash frequency
- 7-segment LED display of real-time flashing frequency
- Triggering frequency 0.2~300 Hz, internal and external; 0.2~180 Hz recommended
- External triggering by a 5~12V pulse signal
- Complete instructions supplied
Technical Specifications
| Specification | Value |
|---|---|
| Flash intensity | Approx. 10000 lux |
| Triggering frequency | 0.2~300 Hz (internal and external) |
| Recommended frequency | 0.2~180 Hz |
| External trigger | 5~12V pulse signal |
| Power supply | AC220V ±5% |
| Dimensions (L x W x H) | 215mm × 140mm × 150mm |
About This Product
Also called a revolution calibration meter or stroboscopic lamp, this unit flashes in step with a moving or rotating object so that it appears to move slowly or stand still. Reading the flash frequency from the display then allows the speed or rotational velocity of the object to be calculated. A microcontroller handles the processing, and a rotating encoder sets the frequency quickly.
Frequently Asked Questions
What frequency range does the stroboscope cover?
The triggering frequency range is 0.2~300 Hz, internal and external, with 0.2~180 Hz recommended.
Can it be triggered externally?
Yes, it accepts an external triggering signal of 5~12V pulses.
What is the stroboscope used for?
Synchronising the flash with a moving target makes it appear slow or stationary, allowing the speed or rotational velocity of an object to be calculated.
Related: Light and Optical, Spectrometer and Optical Bench Kit.
For a quotation on the Xenon Stroboscope, contact Didactic Lab.
