Flow Cone Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-CTLE-11361

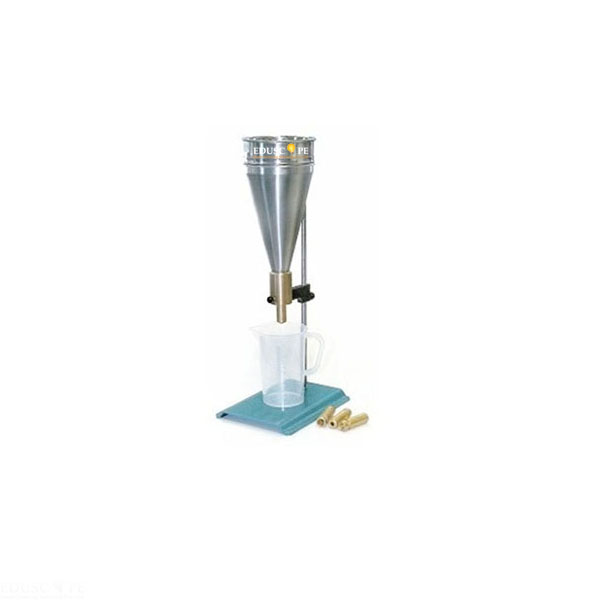

Quick Answer: The Flow Cone Apparatus is a stainless steel cone of 150 mm upper inside diameter and 280 mm height on a metal stand, used to determine the flow properties of mortars, grouts, muds and other fluid materials.
Last updated: October 2026
Key Features
- Stainless steel cone, 150 mm upper inside diameter × 280 mm height
- Metal stand supporting the cone
- Supplied with a 10 mm nozzle and fitting bush, total height 350 mm with this nozzle
- Other nozzles of 8, 9, 11 and 13 mm internal diameter can be fitted
- Supplied with a 150 mm diameter sieve of 1.5 mm opening and a 1 litre cup
- Weight about 10 kg
Technical Specifications
| Specification | Value |
|---|---|
| Cone inside dimensions | 150 mm upper diameter × 280 mm height |
| Total height with 10 mm nozzle | 350 mm |
| Nozzles | 8, 9, 10, 11 and 13 mm internal diameter |
| Sieve | 150 mm diameter, 1.5 mm opening |
| Cup | 1 litre |
| Weight | 10 kg approx |
About This Product
The apparatus is used for determining the flow properties of mortars, grouts, muds and many other fluid materials. A metal stand holds the stainless steel cone, which is supplied with a 10 mm nozzle and fitting bush, a sieve and a 1 litre cup, and nozzles of 8, 9, 11 and 13 mm internal diameter can also be fitted.
Frequently Asked Questions
Which nozzles can be used on the Flow Cone Apparatus?
It is supplied with a 10 mm nozzle and can also be fitted with nozzles of 8, 9, 11 and 13 mm internal diameter.
What is the total height?
The total height is 350 mm when the 10 mm nozzle is fitted.
Related: Cement Testing Lab Equipment, Water Retention Apparatus and Flexural Test Devices for Mortar Beams.
For a quotation on the Flow Cone Apparatus, contact Didactic Lab.
